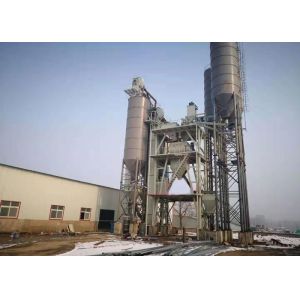

PLC Control Tile Adhesive Machine Production Line With Air
Compressor System
Introduction of tile adhesive machine:
The automatic type tile adhesive machine mainly consists of
high-efficiency mixing system, storage system, conveying system,
lifting system, weighing system, packaging system, dust removal
system, material level control system, alarm system, air pressure
system, whole machine control system, etc. In areas where
commercial sand is scarce, crushing systems, screening systems, and
drying systems can be added. It is highly automatic and has large
output.
What’s tile adhesive?
Tile adhesive is made of cement, quartz sand, polymer cement and
various additives by mechanical mixing. Tile adhesives are
primarily used to bond ceramic and tile adhesives, also known as
polymer tile bonded mortars.
Technical parameters of tile adhesive machine:
| Structure type | Type | Mixer type | Mixer volume (m3) | Output (t/h) | Annual output (ten thousand T) | Applicable scope |
| Tower type | YBSJ-05L | WZ-1.5 | 1.5 | 9--13 | 4.3-6.2 | Suitable for fine mortar production which takes less land area and
more investment |
| YBSJ-10L | WZ-2.5 | 2.5 | 18-23 | 8.5-11 |
| YBSJ-15L | WZ-4 | 4 | 27-35 | 13-17 |
| YBSJ-20L | WZ-6 | 6 | 40-50 | 18-24 | Suitable for coarse mortar production which takes less land area
and more investment |
| YBSJ-30L | WZ-10 | 10 | 60-80 | 27-36 |
| YBSJ-50L | WZ-15 | 15 | 90-130 | 43-62 |
| Station type | YBSJ-05Z | WZ-1.5 | 1.5 | 9--13 | 4.3-6.2 | Suitable for normal mortar production which is easier to install
and takes less investment |
| YBSJ-15Z | WZ-2.5 | 2.5 | 18-23 | 8.5-11 |
| YBSJ-10Z | WZ-4 | 4 | 27-35 | 13-17 |
| YBSJ-20Z | WZ-6 | 6 | 40-50 | 18-24 | Suitable for normal mortar production which is easier to install
and takes less investment |
| YBSJ-30Z | WZ-10 | 10 | 60-80 | 27-36 |
| YBSJ-50Z | WZ-15 | 15 | 90-130 | 43-62 |
Application of tile adhesive:
It is suitable for affixing indoor and outdoor concrete or cement
mortar base, paste of tiles, marble, granite. It is also
Indispensable decoration materials for home decoration. It is
widely used for affixing interior and exterior walls, floors,
bathrooms, kitchens, etc.
Features of tile adhesive machine:
Special design for Construction Project; Easy operate; Convenient
structures for disassembly; Super property and low production cost;
Less space demand; Full -automatic electric operation with PLC/PC
control; Electrical weighing system; Twin shaft forced mixing
system.
FAQ
1, How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement
and your budget, different dry mortar plant investment are
difference.
Low capacity low cost, we will provide you cost effective solutions
as your requirement.
2, What's the difference between full automatic dry mortar plant
and Semi-automatic dry mortar plant?
A: (1) Semi-automatic dry mortar plant is cheaper than full
automatic dry mortar plant.
(2) Semi-automatic dry mortar plant do not need to equip silos
while full automatic dry mortar equip material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic
weighing and packaging, Full automatic dry mortar plant is
automatic feeding and automatic weighing and packaging.
3, How many person required to operate this dry mortar plant?
A: Usually 2-4 workers are enogh to operate this dry mortar plant.
4, What equipment and services you can provide?
A: We can provide you turnkey solution of dry mortar plant from
working site planning to dry mortar machines, transportation,
installation and training, formula of dry mortars, after-sales
services, life time technical support etc.
5, What is the area required for this dry mortar plant?
A: According to the capacity of the dry mortar plant, the area
required 300-100 m2.
6, What is the total power consumption (KW) of this dry mortar
plant?
A: It is 20-80W based on the capacity of the dry mortar plant.
7, What is the capacity of your dry mortar plant?
A: We have dry mortar plant with capacity 3-30T/H as your
requirement, and also we can customize the dry mortar plant as your
capacity requirement.
8, How long is the guarantee period?
A: 12 months, within this period, we provide you spare parts and
services for free.
9, Can you install the dry mortar plant in my country?
A: Yes, we will send engineers to your country for guiding
installation and training your workers to operate the machine.
10, If you want to know more of our dry mortar plant, please send
us inquiry or contact us directly.
