Cast Iron Peripheral Electric Motor Water Pump Qb80 1hp Single
Phase IP44/P54
Electric Motor Water Pump Description:
You can use it to transfer clean water or other liquids similar to water in physical and chemical
properties.
It is suitable for a small living water supply, automatic water
sprinkler system, small air conditioner system, supporting
equipment, etc.
Technical data:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) |
| QB60 | 0.5 / 0.37 | 2.5 | 2850 | 35 | 35 | 9 | 1"x1" | 280x145x180 | 5.3 |
Operating conditions
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift to 9m
Continuous duty
Electric Motor Water Pump Construct:
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum Alloy
Shaft: Carbon Steel/Stainless Steel
Insulation: Class b/Class F
Protection: IP44/P54
Cooling: External Ventilation
Pump Body: Cast Iron(with Brass Insert if required)
Impeller: Brass/Stainless Steel
Mechanical Seal: SIC/Ceramic/Graphite

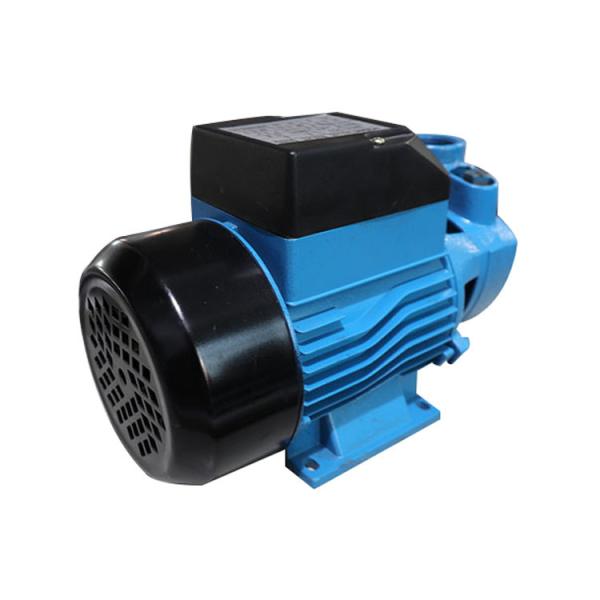

Picture:
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by the
customer's incorrect artificial operation. In addition, after
expiration, our company provides cost spare parts for maintenance.
Our service:
1). We are happy that the customer gives us some suggestions for
price and products.
2). Any questions, please let us know it in the first by E-mail or
Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying
and paying processes.
4). Deliver goods to our customers all over the world with speed
and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators
since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
