    Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-12P2-01PE
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces


    Weatherproof And Dust Prevention Rotary Electrical Interfaces

    This is high protection rotary joint for food machinery, there are 12 circuits transferring power or signal with one circuit for PE.it adopts advanced fiber brush multipoint contact, low friction,long life.when the cover is correctly

    sealed,it can use for dust prevention and weatherproofed to IP65,housing material is aluminum alloy,mounting flanges can be designed to suit customer's requirements,and ATEX compliant is optional, this power slip ring can

    integrate Fiber,RF,pneumatic,hydraulic etc.


    Specification

    ECN000-12P2-01PEPicture
    Current12*10A,1*PE
    Voltage415VAC
    Electrical noise≤30mΩ (50rpm)
    Dielectric strength≥1500V@50Hz
    Insulation resistance500MΩ@500VDC
    Operating speed0-20 rpm
    Contact materialprecious metals
    Housing materialaluminum alloy
    Operating temperature-20~+60℃
    IP protection grade

    Features

    • Easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
    • Low friction, long life,low torque, smooth rotation
    • Fiber brush multipoint contact

    Applications

    • Food machinery
    • Construction engineering
    • Industrial automation equipment


    Optional

    • ATEX compliant
    • Current rating
    • Installation way
    • IP protection grade

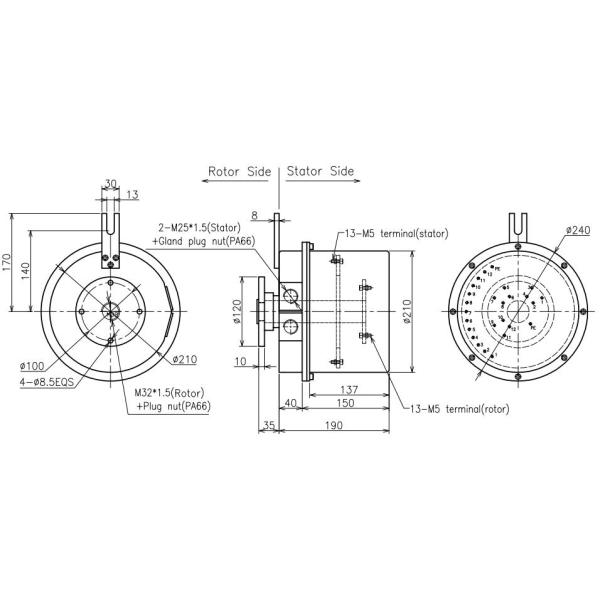

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
