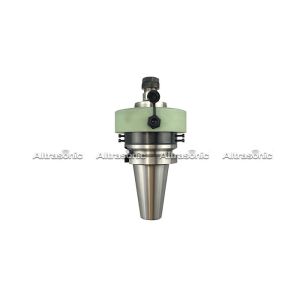

BT40 20Khz Ultrasonic Milling Machining With Multi Size Milling
Tools
Description:
Ultrasonic processing technology has developed rapidly. It has
extensive research and application in the fields of ultrasonic
vibration system, deep hole processing, wire drawing die and cavity
die grinding and ultrasonic composite processing, especially in the
field of difficult-to-machine materials have achieved good results.
Ultrasonic machining refers to the method of applying ultrasonic
vibration to a tool or workpiece in a certain direction.
Ultrasonic milling is a kind of new method of process technology,
is the ultrasonic vibration by adding high frequency
micro-amplitude in general milling process, to change the
machinable property of material. Ultrasonic milling device is
constituted by generator, oscillator and horn.
Ultrasonic oscillator is the energy-gathered part to change and
amplify the electric energy output by generator to mechanical
energy, then pass to work piece. Ultrasonic oscillator can be
designed as the structure which can clamp a certain range on the
basis of requirement of practical application occasion.
Specification:
| Frequency | 20 Khz |
| Output Power | 1000 W |
| Voltage | 220 V |
| Switch | Handle or foot switch |
| Power Adjusting | Step or continuous |
| Working Time Control | 24 Hours |
| Weignt | 30 KG ( Determined by the size of the horn ) |
| Generator | Digital Generator |
Principle:
Ultrasonic machining process uses a power supply that converts
conventional line voltage to 20KHz
electrical energy.
This high-frequency electrical energy is provided to a
piezoelectric converter that changes high frequency electrical
energy into mechanical motion.
The ultrasonic motion from the converter is amplified and
transmitted to the horn and cutting tool.
This causes the horn and attached cutting tool to vibrate
perpendicularly to the tool face thousands of times per second with
no side to side motion.
A recirculating pump forces E/Z Pump™ abrasive, suspended in a
liquid medium, between the vibratingtool face and the workpiece.
The abrasive particles strike the workpiece at 150,000 times their
own weight.
These tiny abrasive particles chip off microscopic flakes and grind
a counterpart of the tool face.
Applications:
- Various kinds of materials especially fragile rigid material.
- Processing plane, groove, all kinds of form surface (such as
spline, gear and thread) and special surface of mould.
- Application area: machining industry, machine tool equipment
manufacturing.
- Application occasion: manufacturing enterprise, universities and
colleges, scientific research institution, mechanical equipment
transformation industry.
