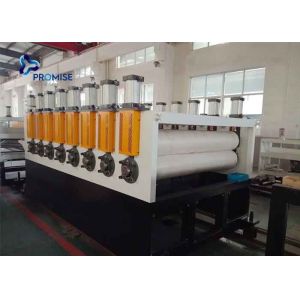

    Formwork Plastic Sheet Extrusion Machine , PVC Crust Foam Board Making Machine

    Ask Lasest Price
    Brand Name : Promise
    Model Number : ZP-92/188
    Certification : CE
    Price : USD85700~142857/set
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 200sets/year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Formwork Plastic Sheet Extrusion Machine , PVC Crust Foam Board Making Machine


    Formwork Plastic Sheet Extrusion Machine , PVC Crust Foam Board Making Machine


    Products Description

    PVC crust foam board making machine PVC concrete formwork building formwork production line

    PVC WPC construction board Production Line promise machinery co.,ltd is a professional manufacturer of pvc plastic board extrusion line. The company is proud of these products: pvc wpc (wood plastic composit) crust foam board extrusion line, pvc crust foam board extrusion line, pvc wood plastic foam board extrusion line, pvc building board extrusion line and pvc free foam board extrusion line.With good quality and competitive price PVC crust foam board is one kind of panel product which is used PVC resin, wood powder or (vegetable fibre) as the main materials, filled in Caco3, and added necessary lubrication, stabilize etc auxiliaries, after fully stirred heated and mixed, dispersed evenly by the high speed mixer, then heated and plasticized by the extruder and mould to form the panel. It is widely used for building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on. For the techinical protection,pls contact us directly for more information
    Product width
    Product thickness
    Extruder
    Max output
    Max motor
    Dimension(L×W×H)
    Weight
    Installed power
    1220mm
    1-10mm
    SJSZ-80×156
    300kg/h
    75kw
    18m*2m*2.6m
    22T
    140kw/h
    1220mm
    3-30mm
    SJSZ-80×156
    400kg/h
    75kw
    20m*2m*2.6m
    25T
    150kw/h
    1220mm
    3-30mm
    SJSZ-80×173
    600kg/h
    90kw
    22m*2m*2.6m
    26T
    165kw/h
    1220mm
    3-30mm
    SJSZ-92×188
    800kg/h
    110kw
    25m*2m*2.6m
    30T
    210kw/h
    1220mm
    10-40mm
    SJSZ-92×188
    800kg/h
    110kw
    26m*2m*2.6m

    Parameters and merits of PVC (wood-plastic composites) Skinning Expansion Plate Production Line This production line composes of conical twin screw extruder, plate dies, forming table, hauler and cutter. The extruder adopts the specially designed screws, improving the integration and plasticizing between PVC and wood powders, and enhances the rigidity of products significantly. The products enjoy a promising future for applications.

    Product width 1,220mm

    Product thickness 3-30mm

    Extruder model SJSZ-80×173

    Maximum extrusion output 600Kg/h

    Main motor power 90KW

    Dimension L × W × H =22m×2m×2.6m

    Weight 26T

    Installed capacity 165KW/h
