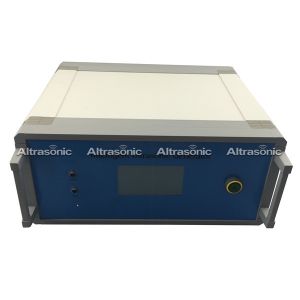

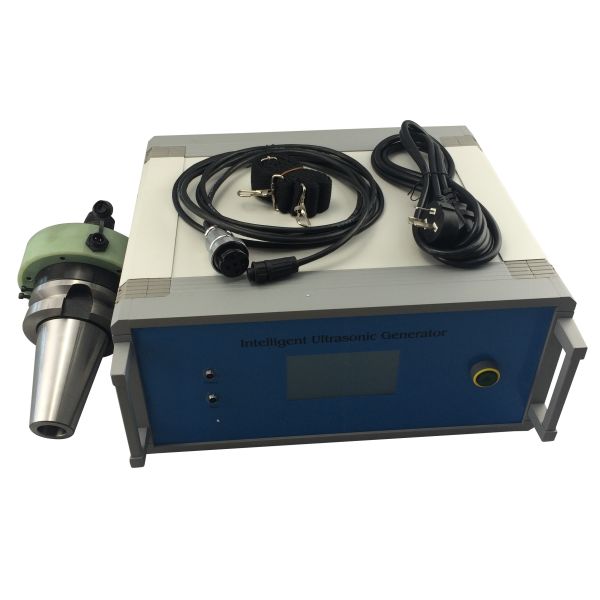

CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies

Non-Contact Power Transmission Technologies Ultrasonic Assisted Machining

Principle :

Rotary ultrasonic machining (RUM) is a mechanical type of nontraditional hybrid machining process that has been utilized potentially to machine a wide range of latest and difficult-to-machine materials, including ductile, hard and brittle, ceramics, composites, etc. In RUM, the basic material removal phenomenon of ultrasonic machining (USM) and conventional diamond grinding amalgamates together and results in higher material removal rate (MRR), improved hole accuracy with superior surface finish.

Specification:

Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W

Advantages:

1. The process is non-thermal, non-chemical, and non-electrical, leaving the chemical and physical properties of the workpiece unchanged. This low-stress process translates into high reliability for your critical applications.

2. Multiple features can be machined at the wafer or substrate level simultaneously, and the process is scalable. Our process is often the highest quality and lowest cost solution.

3. Ultrasonic machined features have vertical side walls, enabling you to preserve valuable space for your designs that translate into higher productivity.

4. The process integrates well with semiconductor and MEMS processes. Machined features can be aligned to previously patterned, machined, or etched substrates.

Applications:

1. Hard and brittle materials can be machined like tungsten carbide, diamond and glass. These are difficult to machine in conventional m/c-ing process.
2. Wire drawing dies of tungsten carbide can be drilled by this process.

3. Circular as well as non-circular holes can be done with straight or curved axes.
4. It has been proved successful in machining geranium, silicon quartz and synthetic ruby etc.

Hangzhou Altrasonic Technology Co., Ltd

Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.

Altrasonic equipment focused on the r&d of high power ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Our company mission:Ultrasonic Technology makes life easier.

WHY CHOOSE ALTRASONIC ?

• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia,  Germany, and other country still being discussing.

• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound,  and the importance of team spirit of cooperation.

• Half the price, double the value. Every product reach you have been test in our company three times, and with  72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
 upgrade our products.

• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

• Individual Customize. We can customize products according to your requirements, Also supply OEM service.

 Customize ultrasonic solution for different applications.
