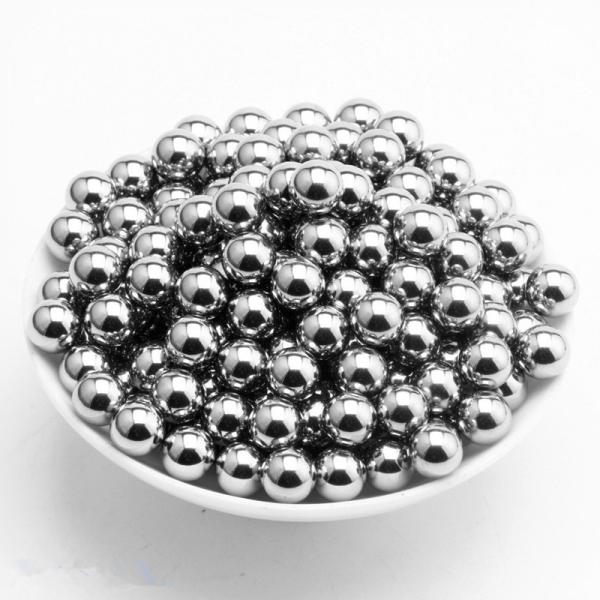

    AISI316/316L Round Steel Balls For Medical Instruments 2.381MM 3/32 Corrosion Resistance

    AISI316/316L Stainless Steel Ball For Medical Instruments 2.381MM 3/32


    Austenitic stainless steel balls with higher corrosion resistance than AISI 304 balls.


    They show good toughness. AISI 316L has a lower carbon content (maximum 0,030%).


    Balls are provided in the passivated condition.


    Applications


    Special bearings, pumps and valves, aerosol and dispenser sprayers.


    Utilised in the foodstuff, paper, chemical, rubber, military, textile industry.


    Applications in photographic devices, medical instruments, quick couplings,


    recirculating balls, ink cartridges, jewels.


    Chemical composition



    Type
    %C
    %Si
    %Mn
    %P
    %S
    %Cr
    %Ni
    %Mo
    316
    0.080 max
    1.00 max
    2.00 max
    0.045 max
    0.030 max
    16.00-18.00
    10.00-14.00
    2.00-3.00
    316L
    0.030 max
    1.00 max
    2.00 max
    0.045 max
    0.030 max
    16.00-18.00
    10.10-14.00
    2.00-3.00

    International standards
    ITA
    USA
    GER
    FRA
    UK
    RUS
    CHN
    JAP
    X5CrNiMo1712-2
    316
    1.4401
    Z6CND17.11
    316S16
    08KH16N11M3
    0Cr17Ni12Mo2
    SUS316
    X2CrNiMo1712-2
    316L
    1.4404
    Z3CND17-11-02
    316S11
    03KH17N14M2
    0Cr19Ni12Mo2
    SUS316L

    Physical / mechanical / thermal / electric / magnetic properties
    Property
    Symbol
    U.o.M.
    Type
    Notes
    Values
    Density
    δ
    [g/cm3]
    Physical
    Room temp.
    7.95
    Young's modulus
    E
    [GPa]
    Mechanical
    -
    200
    Specific heat
    c
    [J/kg-K]
    Thermal
    Room temp.
    500
    Coefficient of linear thermal expansion
    α
    [10^-6/ºC]
    Thermal
    (ΔT=0-100°C)
    17
    Thermal conductivity
    λ
    [W/(m·K)]
    Thermal
    Room temp.
    15.0
    Electric resistivity
    ρ
    [Ω*m*10^-9]
    Electric
    -
    730
    Relative magnetic permeability
    µ
    -
    Magnetic
    Paramagnetic
    1.020*
    Technical data
    Property
    Type
    U.o.M.
    Values
    U.o.M.
    Values
    Hardness
    Mechanical
    [HRC]
    20 - 39 (1)*
    [HV]
    100 - 250 (2)*
    Ultimate tensile strength
    Mechanical
    [MPa]
    550 - 1250
    [psix10^3]
    80 - 180
    Service temperature
    Thermal
    [ºC]
    -196 / 600
    [ºF]
    -320.8 / 1112
    Range
    Diameters (min/max)
    U.o.M.
    Diameters (min/max)
    U.o.M.
    Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)**
    0.300 - 300.000
    [mm]
    1/64 - 12
    ["]
    G100-200-300-500-600-700-1000
    Corrosion Resistance
    Very good corrosion resistance with respect to organic substances, good resistance to several strong acids (acetic, phosphoric, sulphuric acid) and on sea water. They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and to stress corrosion when temperature exceeds 60°C. They do not resist in contact with hydrochloric and hydrofluoric acids, aqua regia, iron and magnesium chlorides.
    Notes
    Property
    Description
    Hardness*
    Balls can be supplied in the (1) COLD WORKED (HRC 20-39, standard product) or (2) ANNEALED (HV 100-250, on demand) conditions.
    Magnetism
    Eventual magnetism of AISI 316 balls and in general of all austenitc stainless steels strictly depends by the manufacturing process, specific inquiries for not magnetic balls should priorly reported.
    Precision grade**
    On specifical request and for big quantities, we can supply G10 and G16 precision grade balls. Diameters from 3.000 mm to 1/2".
    Precision Grade**
    On specifical request we can supply G20-24-25-28-40-48-50-60-80 precision grade balls.
