Touch Controller High Speed Diamond Saw Metallographic Cutting
Machine with Cooling System
Technical Data Download: iqualitrol cutting machine GS-5000B
Brief Introduction:

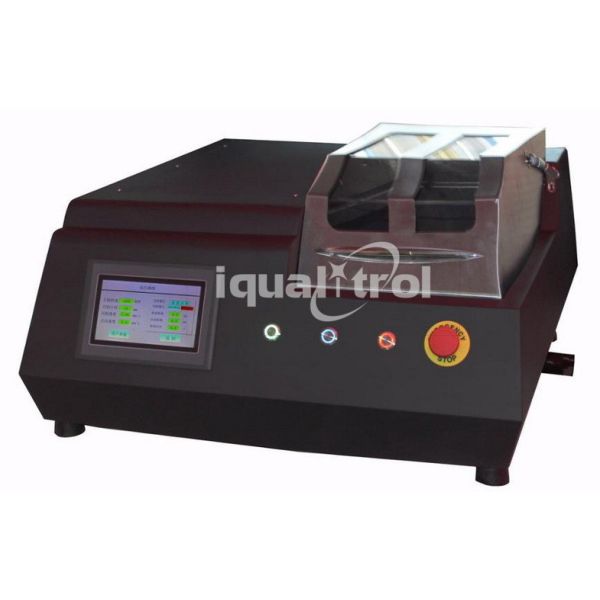

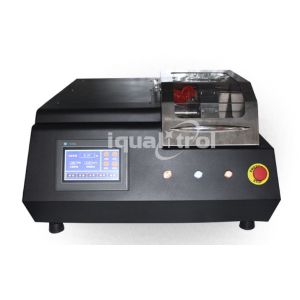

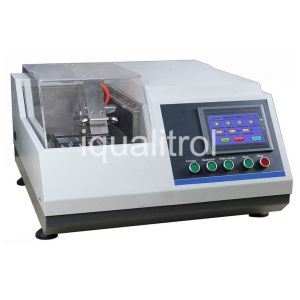

iqualitrol GS-5000B Precision cutting machine is suitable for
metal, electronic components, ceramic materials, crystals, carbide,
rock samples, ore samples, concrete, organic materials, biological
materials (teeth, bone) and other materials for precise cutting
without distortion .
The machine has the features of high positioning accuracy; large
speed range; built-in cooling system; can be preset feed speed;
menu-driven control; liquid crystal display.
There are two locations clamp, 9 kinds of fixed cutting method, the
user can freely define one kinds of cutting methods; enclosed
cutting chamber with safety switch. It is an ideal equipment for
industrial and mining enterprises, research institutes and
high-quality sample preparation lab.
Technical Specification:
| Model | GS-5000B |
| Feed speed | 0.01-3mm/s |
| Wheel speed | 500-5000r/min |
| MAX cutting diameter | Φ60mm |
| Input voltage | AC220V/50HZ/1Ph |
| Maximum stroke | Y 200mm |
| Cutting wheel size | Φ200mm x0.9mm x32mm |
| Motor: | 1.1KW |
| Dimension | 860mm x750mm x435mm |
| Net weight | 130kg |
When cutting a specimen from a larger piece of material, care must
be taken to ensure that it is representative of the features found
in the larger sample, or that it contains all the information
required to investigate a feature of interest.
One problem is that preparation of the specimen may change the
microstructure of the material, for example through heating,
chemical attack, or mechanical damage. The amount of damage depends
on the method by which the specimen is cut and the material itself.
Cutting with abrasives may cause a high amount of damage, while the
use of a low-speed diamond saw can lessen the problems. There are
many different cutting methods, although some are used only for
specific specimen types. iqualitrol provides the iCut-864 low speed
diamond saw for cutting OM (optical microscope), SEM (scanning
electron microscope), and even TEM (transmission electron
microscope) specimen.
