2D QR Arduino Barcode Scanner Module Cross Hair Laser Scanner High
Resolution with Closer Decoding
Bar code scanner engine is widely embedded in various devices, such
as PDA, hand held bar code scanner, locker, tablet and so on. These
devices can be used in many area, such as scanning the 1D code in
the label on the patient’s hand and label on the vial, and so on.
As before, when the nurse want to know this patient use which kind
of vial, they need to pull the cable of vial that will cause
patient hand pain.
Based on this situation, Rakinda Technology Co, ltd produced one
kind of bar code scanner engine with small size, Designed for OEM
application, easily adopted into all kinds of equipments where need
the 1D barcode scanning application, such as tablet, PDA, mobile
phone and hand held barcode scanner. Designed for OEM applications,
this high performance CCD scan engine can easily be integrated into
various solutions such as kiosks, ticketing machines, PDA's and
many more.
Product Features:
1)2D Barcode Decoder Chip
The engine armed with the state-of-the-art 2D barcode decoder chip
invented by Rakinda demonstrates unprecedented reading performance.
2)Two-In-One Design
Seamless integration of CMOS image sensor and decoder board makes
the engine small, lightweight and easy for integration.
3)High Performance & Ultra-Low Power Consumption
The engine can read 1D and 2D barcodes with a power consumption
only one third that of a traditional engine.
4) All-Round Scanning Capability
It can read barcodes on virtually any medium - paper, plastic
cards, mobile phones and LCD displays.

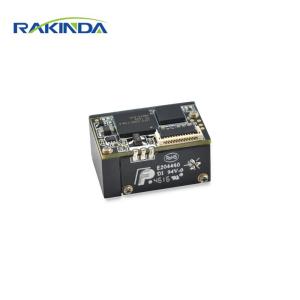

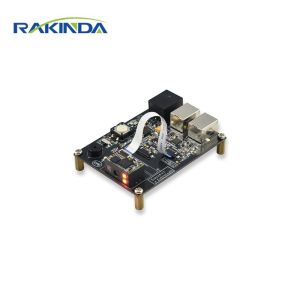

Technical Specifications of LV3396 2D Barcode Scanner Module
| Performance | Image Sensor | 752×480 CMOS |
| Light Source | Illumination: 625±10nm red LED Aiming: 650nm laser diode |
| Symbologies | 2D | PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code,
Chinese Sensible Code |
| 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1
Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of
5, Plessey, MSI-Plessey, etc. |
| Resolution | ≥5mil |
| Typical Depth of Field | EAN-13 | 60mm-290mm (13mil) |
| PDF417 | 55mm-135mm (6.67mil) |
| Code39 | 55mm-165mm (5mil) |
| Data Matrix | 55mm-130mm (10mil) |
| QR Code | 45mm-175mm (15mil) |
| Symbol Contrast | ≥25% reflectance difference |
| Scan Angle** | Roll: 360°, Pitch: ±55°, Skew:±55° |
| Field of View | Horizontal 36°, Vertical 23° |
Mechanical/ Electrical | Interface | TTL-232, USB (optional) |
| Rated Power Consumption | 0.66W |
| Operating Voltage | 3.3±10% VDC |
| Current @3.3 VDC | Operating | 200mA |
| Standby | 4mA (USB not supported); 7mA (USB supported) |
| Dimensions | 21.3(W)×15.5(D)×11.6(H)mm |
| Weight | 6.5g |
| Environmental | Operating Temperature | -20℃~+55℃ (-4°F~131°F) |
| Storage Temperature | -40℃~+70℃ (-40°F~158°F) |
| Humidity | 5%~95% (non-condensing) |
| Ambient Light | 0~100000lux (natural light) |
| Certifications | FCC Part5 Class B, CE |
A variety of bar code scanner modules that Rakinda Technology can
provide and easily to be embedded . As Rakinda Technology has more
than 18-year manufacturing experience for bar code scanner, which
already has professional research and development team. More
details , pls contact us!
