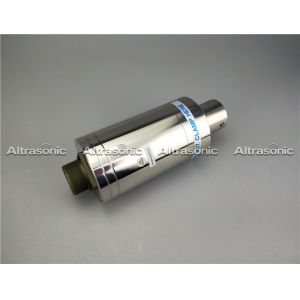

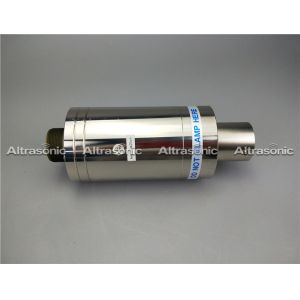

20khz Replacement Brason CR20 Ultrasonic Welding Transducer With
Protective Housing
Specification:
| Model | HSBCR20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Application | welding machine |
Description:
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CR20 (101-135-059) , that
delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled
manufacturing processes, assembled and tested in a
climate-controlled environment using carefully calibrated
equipment, then properly aged and re-tested to ensure performance
that duplicates the OEM part.
Replacement Item Specification:
| Model | Frequency (khz) | Ca(PF) | Power(w) | Machine |
| Branson 402 | 19.6-20.0 | 7800-8500 | 450-900 | Branson8400 |
| Branson 502 | 19.6-20.0 | 11500-12500 | 2000 | Branson8800/5170 |
| Branson CJ20 | 19.4-19.7 | 19000-21000 | 1100-4000 | Branson2000 series |
| CB35A15A | 36.5-7.5 | 3300-4000 | 800 | Rinco-35A15A |
| CV231 | 38.3-39.0 | 3500-4500 | 900 | 40k Metal Welding |
| CV3510 | 36.2-37.0 | 3200-4000 | 800 | Rinco-CV3510 |
| Dukane 110-3122 | 19.6-20.0 | 12500-14000 | 2600 | Dukane Heavy Duty |
Why Pay More?
OEM converters have one of the highest markups of any industrial
component you can buy. A high-quality replacement part such as this
can result in significant savings, plus some of our customers tell
us these converters run cooler and last longer than the OEM
converters they replace.
Applied Range:
Ultrasonic transducers are widely used. They are divided into
industry, agriculture, transportation, life, medical and military
according to the applied industry. According to the functions
realized, it is divided into ultrasonic processing, ultrasonic
cleaning, ultrasonic detection, detection, monitoring, telemetry,
remote control, etc.; according to the working environment, it is
divided into liquid, gas, biological, etc.; according to the
nature, it is divided into power ultrasonic, ultrasonic detection,
ultrasonic imaging, etc.
Competitive Advantage:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and
final assembly. The properties of piezoelectric materials can
change with time and pressure, so a bit of time on the shelf prior
to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance
are excellent.
4. In good heat resistance, can be used in a wide range of
temperature with long life and high reliability.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts
for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20,
CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we
can give you a competitive price and custom-made it for you.
