External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter

External IP65 CPE Black PP Fiber Optic Cable Joint Box Transformer 16 SC Adapter

Network access point FDB0216B is an external use product for installation in overhead networking (pole/wall/steel wire).

Features

• Made of high strength plastic engineering material, anti-aging, anti-UV and corrosion.
• Mix splitting, splicing, distribution and fiber storage in one set, convenient for ftth deploying
• Small size, unique design, round shape, smooth and strong.
• Total closed with brackets, ropes and pole mount metal sheet.
• Wall mount, pole mount ,aerial mount available.
• Best for outdoor harsh environment, waterproof IP65 grade.
• There is position on box surface for logo or brand, silk print or laser mark both ok.
• The feeder cable can go in and through the box without cut, because the cable entry port is mid span, and mechanical sealing.
• Reasonable and enough space for fiber cable management system, which ensure fiber radius <40mm.
• Suitable for 16 pcs ftth (fiber to the home) drop cable distribution.

Specification

Box Overview:

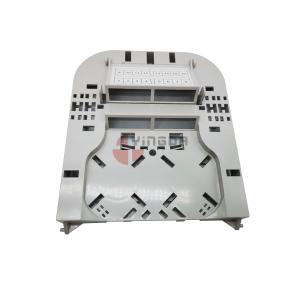

Splice & Adapter tray

Standard accessory

Plastic bracket, metal wall/pole mount kits, heat shrink protection sleeve, nylon tie, cable tie, label mark, buffer tube, etc.

How to open the box?

1. Open the screw with a screwdriver.
2. Open the bracket at right side, and loose the clip in front of the cable ports, open the front strip according to the picture direction.
3. Take off the bracket from back, then can take off the lid by hand.

Care and safety

Be careful when handing cables and optical cords, especially in the management of bare optical fibers.

During accommodation of the basic units within the product, check the bending radius and nay other interference with other components while opening and closing the product.

Optical connectors must be clean before each connection and every re-connection.

Stay alert for laser radiation warnings, do not manipulate connectors when lasers are on and do not turn the connectors towards the eyes.
