    Brake System Automotive Steel Pipe Welded 0.5-2mm Thickness ASTM Standard

    Ask Lasest Price
    Brand Name : Torich
    Model Number : SAEJ526
    Certification : ISO 9001 ISO14001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000tons per month
    Delivery Time : 6-8 weeks
    • Product Details
    • Company Profile

    Brake System Automotive Steel Pipe Welded 0.5-2mm Thickness ASTM Standard


    TORICH SAEJ526PVF/ Copper Coating Single WallBundy Tube For Brake System

    1. StandardSAEJ526 Welded low-carbon tubing
    EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
    ASTM A254 Copper-brazed steel tubing

    2. Steel GradeBHG1,SPCC,SPCD, SPCEN, ST14, ST15, ST16,DC04, DC05, DC06

    3. Heat TreatmentBK or NBK

    4. Production ProcessTube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere- Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing

    5. Packing: In coil, in wooden box with seaworthy packing

    6. Application:
    1)Fluid carrying system for automobiles
    2)Fluid carrying system for refrigerators
    3) Wire condenser for chillers, showcase
    4) Vending machine, ice machine etc.


    7. Specification

    O D/ mm44.24.7666.357.889.52
    W T0.5-1.0mm (0.5-0.7mm common WT)
    Tolerance±0.05mm
    Length180Kg/coil; 700-1000m/coil; per customer’s request

    8. Surface Treatment

    CoatingThicknessSalt spray test duration
    Copper/WhiteZinc/Colour-Zinc8μm72h
    PVF8μm+20μm1000-2000h
    Military Green Zinc8μm180h
    GALF8μm+20μm1000-2000h
    Nylon8μm+40μm180h

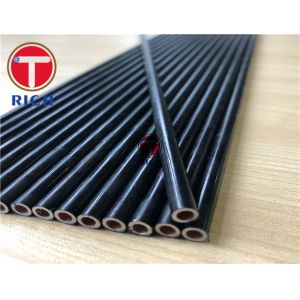

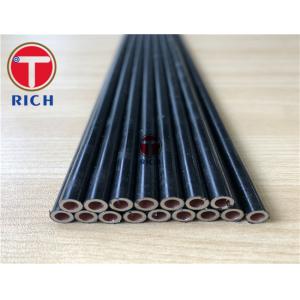

    9. Product photos:














    Quality Brake System Automotive Steel Pipe Welded 0.5-2mm Thickness ASTM Standard for sale
