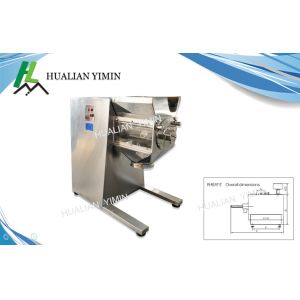

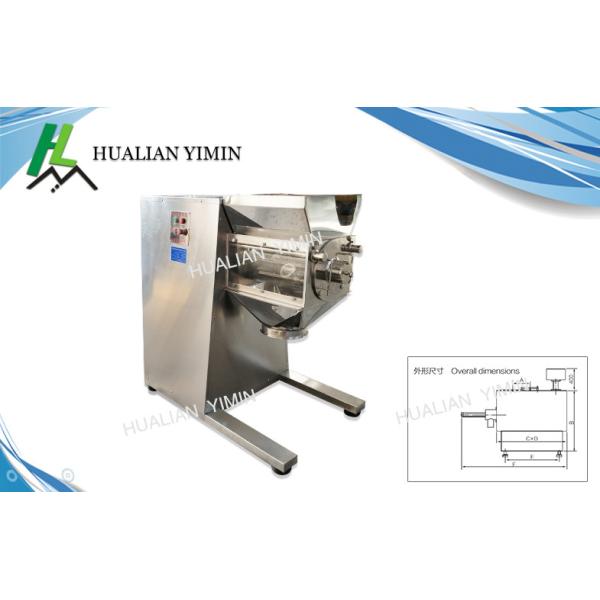

YK-250single stirrer oscillating granulator double cylinder pharma
food powder block granulator lab pill granulator
Descriptions and usage:
This machine is suitable for batch production of solid materials in
pharmaceutical, chemical, food, scientific research institutes,
laboratories hospitals and health care products factories. It can
make the stirred materials into the required size particles or
break the caked materials into small particles. The whole machine
of the oScIllatinG granulator is made of high quality stainless
steel and meets the GmP standard.
Principle of operation and matters needing attention

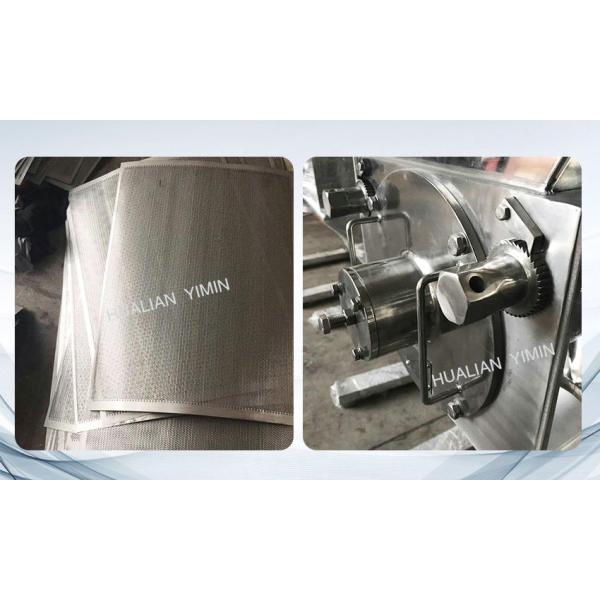

The oscillating granulator is mainly composed of feeding hopper
roller, screen and mechanical transmission system. When it works,
the mechanical transmission system drives the drum to rotate. There
are seven"Scrapers "With trapezoidal cross-section on the drum
Under the drum, there is a screen with a sieve clamped by a pipe
with a wheel. The aggregated material is added by the feeding
hopper and the scraper produces extrusion and shearing effect on
the material due to the positive and negative rotation of the drum
Squeeze the material through the screen to form granules.
When the oscillating granulator is running, the tightness of
feeding arrangement and screen position directly affects the
quality of the granules. When the feeding hopper has a large amount
of material and the screen clamp is loose, the particles are hard
because the number of times the soft material passes through the
screen increases when the drum rotates.
The particle size distribution obtained by the oscillating
granulator is generally uniform, which is conducive to the uniform
drying of wet particles. Its main features are that the rotating
speed of the rotating drum can be adjusted, the loading and
unloading of the screen screens easy, and the tightness of the
screen can be adjusted appropriately.
The mechanical transmission system is all sealed in the body, with
an adjusting system, which improves the service life of the
parts.However because the granulation process is directly pressed
by the drum into the screen the material on the screen extrusion
force of friction are larger. Formulas of metal contamination are
easy to be produced when using metal screen, while nylon screen
needs to be replaced frequently because of its easy breakage.
Attention should be paid to it when using it.
