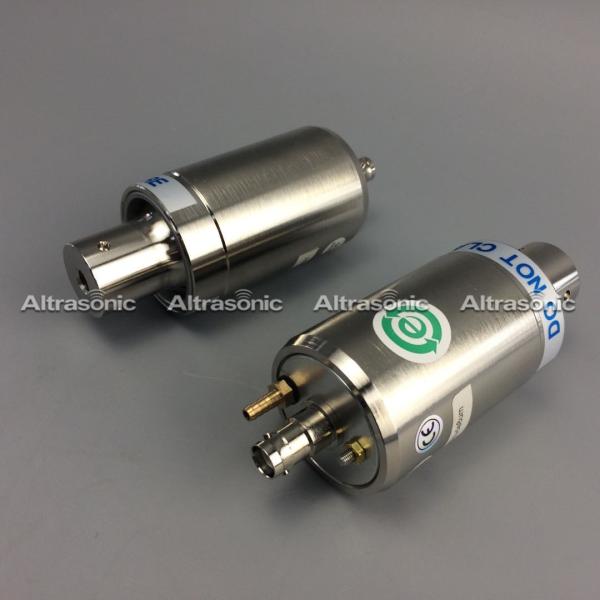

High Power 40Khz 800Watt Branson 4TH Replacement Ultrasonic Welding
Transducer
Specifications:
| Model | HSB4TH |
| Frequency | 40 khz |
| Output power | 800 watt |
| Joint bolt | M8*1.25 |
| Ceramic disc Diameter | 25 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 4.2nf |
| Amplitude | 6 um |
| Application | welding machine |
Description:
The Replacement Converter for Branson 4TH Direct replacement for
the Branson 4TH that
delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled
manufacturing processes, assembled and tested in a
climate-controlled environment using carefully calibrated
equipment, then properly aged and re-tested to ensure performance
tha2t duplicates the OEM part.
Warranty:
We offer the same warranty as the OEM, namely, three years one-time
replacement.
Simply ship the broken unit back to arrive within three years of
original shipment, and it will be replaced (one time).
Applied Range:
Replacement ultrasonic converter for Branson model 4TH, for use
with 40KHz welding machine.
Competitive Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and
final assembly. The properties of piezoelectric materials can
change with time and pressure, so a bit of time on the shelf prior
to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance
are excellent.
4. In good heat resistance, can be used in a wide range of
temperature with long life and high reliability.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts
for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20,
CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we
can give you a competitive price and custom-made it for you.
