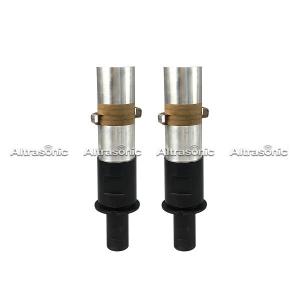

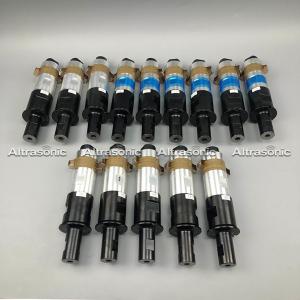

20 KHz 1500W 4PCs PZT Ultrasonic Transducer , Ultrasonic Welding Transducer

20 KHz 1500W 4PCs PZT Ultrasonic Transducer , Ultrasonic Welding Transducer

Description:

Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.

Ultrasound is the conversion of high frequency electrical energy into mechanical vibration through a transducer. The characteristics of the transducer depend on the material selection and manufacturing process. The performance and service life of the transducer of the same size are very different. Altrasonic's transducers are heat resistant and can be used over a wide temperature range with long life and high reliability. We will test each one before shipment to ensure that each sensor performs well.

Specifiction:

Item No:HS-5020-4Z

Connect Screw:M18*1.5

Ceramic diameter:50mm

Qty of ceramic:4pcs

Frequency:20khz

Max.Amplitude:10um

Power:1500w

Features:

1. High mechanical quality;

2. The piezoelectric element provides high speed vibration;

3. The output amplitude is stable even if the load changes significantly;
4. Extend the use temperature to ensure good linearity of amplitude;

5. Bolt installation makes installation quick, easy and reliable;

6. Easy to assemble;

7. Good heat resistance;

8. The working temperature range is large;

9. Low resonance impedance and thermal efficiency;

10. Ggood Building;

11. Fasten with bolts.

Competitive Advantages:

1. Stable parameters;

2. Easy matching with ultrasonic power supply;

3. Superior raw materials;

4. Accept OEM cooperation;

Application:

Commonly used high-power ultrasonic transducers are used in ultrasonic plastic welding machines, ultrasonic metal welding machines, ultrasonic atomizers, ultrasonic assisted processing, ultrasonic equipment, etc. Commonly used 15KHz 20KHz 28KHz 35KHz 40KHz 55KHz 70KHz and other products can also be designed according to customer's special requirements to produce non-standard transducers to meet a variety of needs.

Hangzhou Altrasonic Technology Co., Ltd

Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.

Altrasonic equipment focused on the r&d of high power ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Our company mission:Ultrasonic Technology makes life easier.

WHY CHOOSE ALTRASONIC ?

• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia,  Germany, and other country still being discussing.

• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound,  and the importance of team spirit of cooperation.

• Half the price, double the value. Every product reach you have been test in our company three times, and with  72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
 upgrade our products.

• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

• Individual Customize. We can customize products according to your requirements, Also supply OEM service.

 Customize ultrasonic solution for different applications.
