    Ftth FE 155M Sfp Ethernet Transceiver SFP Fiber Module 1310nm 20km LC Connector

    Ask Lasest Price
    Brand Name : Wangtong
    Model Number : WT155S20
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 10000pcs/month
    Delivery Time : 5-10 days upon order quantitities
    • Product Details
    • Company Profile

    Ftth FE 155M Sfp Ethernet Transceiver SFP Fiber Module 1310nm 20km LC Connector

    ftth FE 155M optical transceiver SFP fiber module 1310nm 20km LC connector


    Description


    The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 40km transmission distance with SMF


    The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


    Feature


    ●Up to 155Mbps data rate operation

    ●1310nm FP laser and PIN photo detector for 40km transmission

    ●Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

    ● Digital Diagnostic Monitor Interface

    ● Very low EMI and excellent ESD protection

    ● +3.3V single power supply

    ●Compatible with RoHS


    Application


    Gigabit Ethernet
    Fiber Channel
    Switch to Switch interface
    Switched backplane applications
    Router/Server interface
    Other optical transmission systems


    Parameter

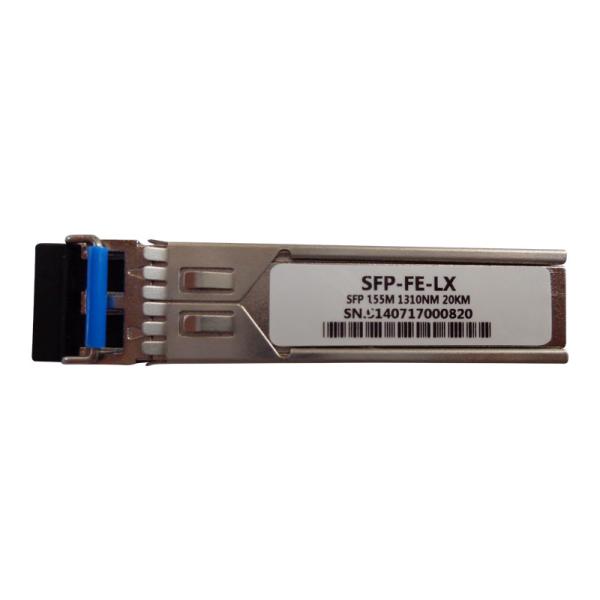

    Product Pictures
