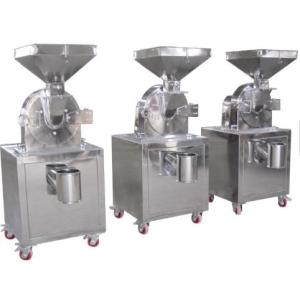

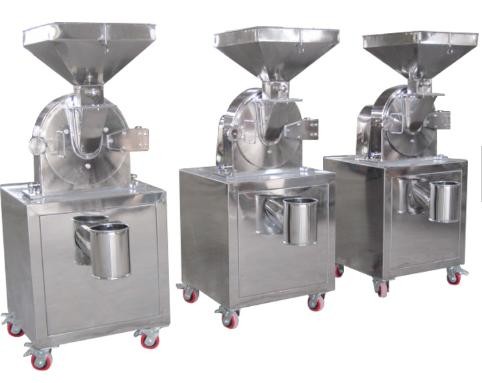

Lab Herb Pulverizer/herb Grinding Machine/herb Grinder Mill
Features
Grinding machine for herb spice pepper chill is suitable for
pharmaceutical, chemical, pesticide, food and food and other
industries, the use is very extensive. The machine uses the movable
teeth plate and the fixed tooth to cross examine the high speed
relative motion, which causes the crushed material to be crushed by
the impact of the tooth, the friction and the other the impact of
each other. The machine has simple structure, solid, stable
operation, good crushing effect, Crushed material can directly by
the host grinding chamber, the different pellets size can be
obtained by changing different aperture of mesh.
Applications
Our grinder machine suits for sugar,salt, rice, corn, starch, oats,
flour, beans, peas, lentils, beans, spices, flavors, sweeteners,
dried fruit, nuts, broken bread, cocoa powder, potato powder, milk
powder, onion, dehydrated vegetables, lotus seed, glucose, oat
hulls, shells, ginger, Chinese prickly ash, chili, pepper, naked
oats, beans.
Specifications
| Model | 30 | 40 | 60 | 80 | 100 |
| Output(kg/h) | 100-400 | 160-1000 | 500-1200 | 1000-5000 | 2000-8000 |
| Speed(r/min) | 3800 | 3400 | 2800 | 2000 | 1500 |
| The size of the material(mm) | <6 | <10 | <12 | <12 | <12 |
| Crushed mesh(mesh) | 20-120 | 12-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 5.5 | 11 | 18.5 | 37 | 55 |
| Weight(kg) | 350 | 550 | 680 | 1500 | 2500 |
| Dimension(mm) | 600×700×1450 | 800×900×1880 | 900×900×1880 | 1100×950×1960 | 1350×1000×2100 |
