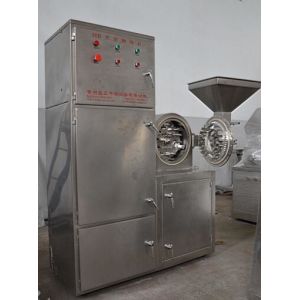

WF-40B-X Universal Grinder(Cooling with dedusting water)
Description:
This series of high-speed stainless steel crusher are integral,
solid structure, stable operation. All stainless steel grinder made
of stainless steel grinder, except the shell is cast iron, the rest
are made of stainless steel, has good corrosion resistance, can
guarantee the purity of crushing materials.

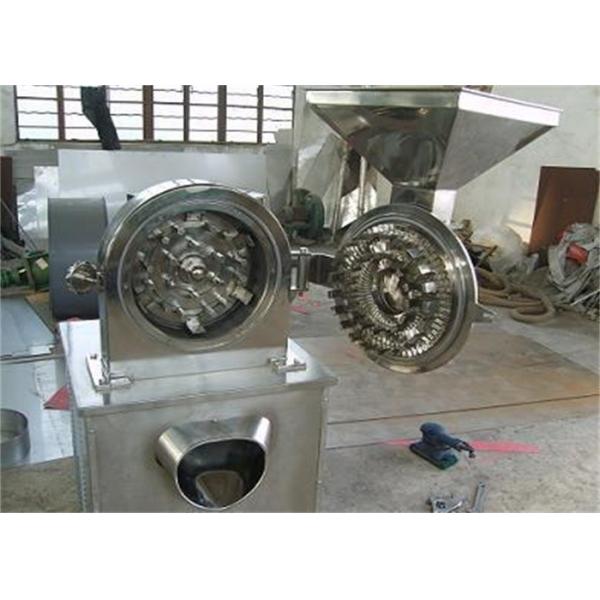

This series of grinding machine is mainly composed of the main
chassis, chassis, spindle, moving disk, fixed disk, sieve, hopper
and other major components, the movable disc fixed on the spindle,
fixed disk installed on the front cover, after the motor starts,
the disk with the spindle together for high speed rotary motion.The
advanced grinding block is combined with dust catcher, which not
only meets the requirements of crushing, but also solves the
problem of crushing and flying. It is an excellent equipment in
industrial production, and conforms to the requirements of "GMP" in
drug production
Main Parameter:
1,Speed of Main Shaft:3400 r/min
2,Power:7.5+0.55KW
3,Fineness of pulverization:20-120Mesh
4,Production Capacity:160-500kg/h(According to the particle size of
the finished product)
5, Working temperature :<55℃
6,Noise:<85DB
7,Spindle rotation direction: clockwise direction
8,Discharging type: self suction
9,Overall Size:1400mm×720mm×1750mm
