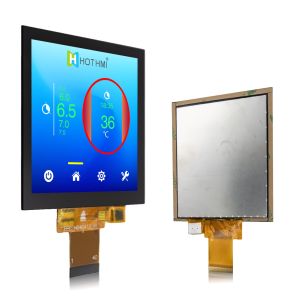

    Square IPS TFT LCD Display 4 Inch Capacitive Touch TFT LCD Display

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H040A12DHIIL3C40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Square IPS TFT LCD Display 4 Inch Capacitive Touch TFT LCD Display

    4 Inch 320x320 Dots IPS Square TFT LCD Display / Panel With CTP TFT-H040A12DHIIL3C40


    Product parameters


    Display Content - 320x320
    Dimensions (mm) - 74.66x76.54x2.02
    Display Size - 4.0 inch
    Effective Size (mm) - 71.14x69.82
    Product Application - Instrumentation
    Perspective - Full Perspective
    Interface - SPI+MCU
    Working temperature - (-20~70℃)
    Supply Voltage - 2.8v

    ITEMPARAMETER DESCRIPTIONUNIT
    TFT seriesTFT-H040A12DHIIL3C40
    Diagonal size4.0Inch
    Resolution320x320Dot
    Dimensions83.9x83.9x3.21mm
    Active area (AA)71.14x69.82mm
    LCD typeTFT LCD Displaymm
    Display viewing angleFull View(U80/D80/R80/L80)
    Aspect ratio3:2
    Backlight typeLED white
    TFT driver ICILI9488 or compatible IC
    Brightness350cd/m2
    Operating temperature-20~70
    Storage temperature-30~80


    Describe


    H040A12DHIIL3C40 is a high brightness 4" square IPS TFT-LCD display module with projected capacitive touch panel (CTP); made of resolution 320 x 320 pixels. This module supports SPI+MCU interface, adopts IPS panel, has left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), contrast ratio 800: 1 (typical value of wider viewing angle), brightness 350 nits (typical), anti-glare panel, 1:1 aspect ratio. The display screen is suitable for 86 box installation, suitable for central air conditioning display panel, smart machine home appliance control, industrial control, etc.

    The H040A12DHIIL3C40 square TFT liquid crystal display module is an integrated driver IC ILI9488 on the module. The interface power supply voltage range is 2.5V to 3.6V, and the typical value is 2.8V. The H040A12 model can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°C.


    Search keyword: tft 4", 4 tft lcd, 4" tft lcd, 4 inch tft lcd, tft lcd 4, 4 tft display, 4" tft display, 4 inch tft display, tft display 4"


    TFT-H040A12DHIIL3C4.pdf
