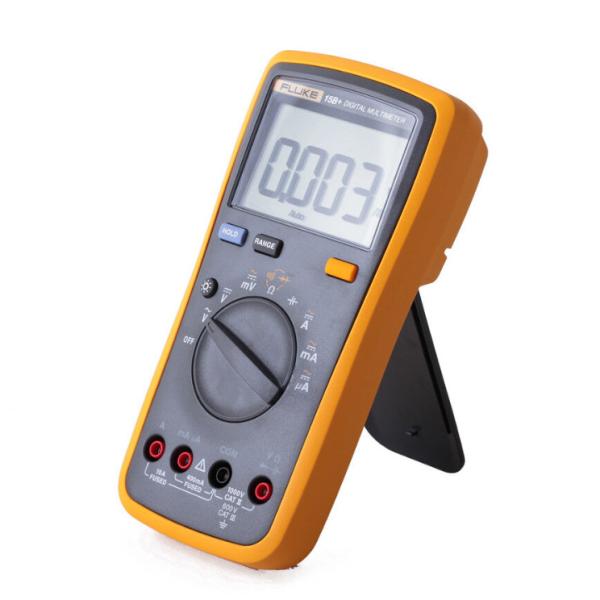

Fluke 15B+ 17B+ Digital Multimeters With Test Lead Fluke Voltage
Probe Meters
Your job requires that you have a rugged, reliable and accurate
digital multimeter. The Fluke 15B+ digital multimeter does all that
and more. Easy to use with one hand, even with gloves on, the Fluke
15B+ offers everything you need.
The Fluke 15B+ and 17B+ digital multimeters are compact, easy to
use tools that deliver safe, reliable measurements.
The right tools for the job
Your job requires that you have a rugged, reliable and accurate
digital multimeter. The new Fluke 15B+ and 17B+ offer everything
you need.
Product highlights
• NEW – CAT III 600 V safety rating
• NEW – 50 % bigger display with bright white backlight
• NEW – Over-voltage indicator (17B+)
• Frequency and temperature measurement (17B+)
• Voltage, resistance, continuity, capacitance
• Input terminal for ac and dc current measurements to 10 A current
• Diode test, data hold
Ordering information
FLUKE-15B+ Digital Multimeter / FLUKE-17B+ Digital Multimeter
Included Test leads with caps, thermocouple temperature probe (17B+), 2 AA
batteries, users manual.
Optional accessories TPAK Meter Hanging Kit TL175 TwistGuard™ Test Leads
| General specifications |
| Maximum voltage between any terminal and earth ground | 1000 V |
| Display (LCD) | 4000 counts, updates 3/sec |
| Battery type | 2 AA, NEDA 15A, IEC LR6 |
| Battery life | 500 hours minimum (50 hours in LED Test mode without load. The
hours with load depends on the type of LED under test.) |
| Temperature |
| Operating | 0 °C to 40 °C |
| Storage | -30 °C to 60 °C |
| Relative humidity |
| Operating humidity | Non-condensing (<10°C)
≤90% RH at 10 °C to 30 °C;
≤75% RH at 30 °C to 40 °C |
40 MΩ range
≤80% RH at 10 °C to 30 °C;
≤70% RH at 30 °C to 40 °C |
| Altitude |
| Operating | 2000 m |
| Storage | 12,000 m |
| Temperature coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
| Fuse protection for current inputs | 440 mA, 1000 V Fast Fuse, Fluke specified part only.
11A, 1000V Fast Fuse, Fluke specified part only. |
| Size (H x W x L) | 183 x 91 x 49.5 mm |
| Weight | 455 g |
| IP rating | IP 40 |
| Safety | IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution
Degree 2 |
| Electromagnetic environment | IEC 61326-1: Portable |
| Electromagnetic compatibility | Applies to use in Korea only |
Class A equipment (industrial broadcasting & communication
equipment)1
1 This product meets requirements for industrial (Class A)
electromagnetic wave equipment and seller or user should take
notice of it. This equipment is intended for use in business
environments and is not to be used in homes. |
