    17AM Customized Bimetal Series Thermal Protector With 3 Wires

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-RBHQ-66
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    17AM Customized Bimetal Series Thermal Protector With 3 Wires

    Customized 17AM Bimetal Series Thermal Protector with 3 Wires


    The 17AM three wires Thermal protector is 10A, 135±15⁰C on, 150±5⁰C off, max.500V.

    17AM thermal protector prevents overheating in a variety of household,industrial and commercial products. We can produce various lead wires to meet customer application needs for overall length, wire type, wire size, terminated connection and stripped length requirements. It is a miniature, snap-acting, thermally operated device that is a proven performer in protection technology.


    Bimetal Series Thermal Protector Data

    Product name:Series Thermal Protector With 3 Wires
    Type:17AM 150 Degree Temperature Switch ;
    Color:White
    Size:Normally Closed
    wire length :>10cm
    wire dia:>0.5mm
    Contact resistance:<50mΩ
    Operating temperature:150±5⁰C off
    Reset temperature:135±15⁰C on

    Current flows through your lead connection into the crimp terminal, through the member, bimetal disc, and mating contacts. The current completes its path by exiting through the plate member and the integral plate crimp terminal to your lead connection. As the temperature rises, the heat is transferred to the bimetal disc. The disc then snaps open at the factory-calibrated opening temperature, thus breaking the current path. The bimetal disc snaps closed when the reset temperature level is achieved.

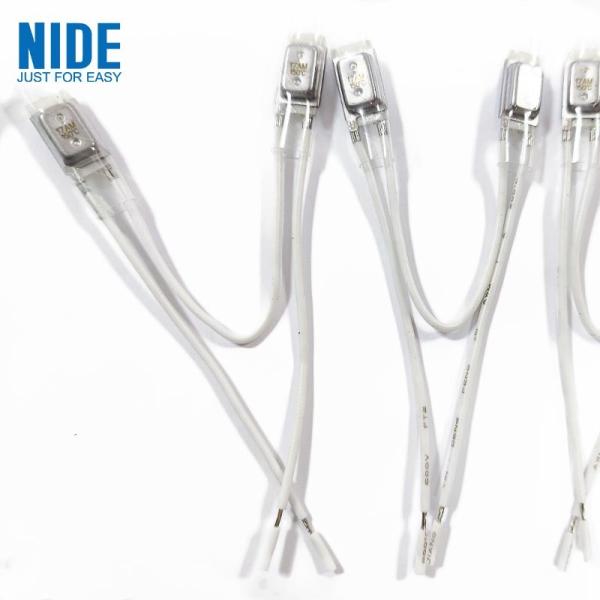

    Bimetal Series Thermal Protector Picture

    Customized Thermal Protector :

    1. Customized lead wire: Customized wire material, length and color according to customer needs

    2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

    3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
