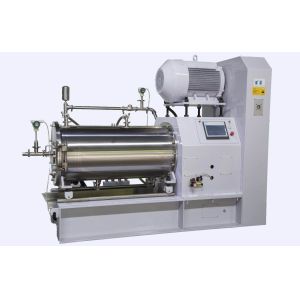

200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral

    Buy cheap 200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral from wholesalers

    Buy cheap 200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral from wholesalers
    • Buy cheap 200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral from wholesalers

    200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral

    Ask Lasest Price
    Brand Name : AllWin
    Model Number : SP200
    Certification : ISO9001
    Price : USD4000--USD316000/set
    Payment Terms : T/T, MoneyGram, Western Union
    Supply Ability : 30sets /month
    Delivery Time : 20-30 Working Days
    • Product Details
    • Company Profile

    200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral

    200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral


    The main introduction of Sand Mill Machine:


    Sand Mill Machine can produce continuously, the working principle is the power delivered form high-speed rotor to milling medium and liquid material, through mutual colliding and laminating, ultrafine result can be achieved.


    The Technical Data of Sand Mill Machine:

    Nomain parametersSP200Note
    1Non Explosion-proof motor kW55kW (Non Ex)
    2

    Effective volume of

    grinding chamber (L)

    200
    3Water pressure (MPa)0.3
    4Cooling water consumption (L/min)2.5 -3m3/hAdvise offer the Cooling water less 10°C
    5Dimensions:L*W*H (mm)2000*900*2000
    6Weight (kg)2500

    The Configuration instructions of Sand Mill Machine:

    1. Outer chamber materials: 304 stainless steel

    2 Inner Chamber materials: 304 stainless steel or you need

    3. Dispersing shaft: 40Cr with hard chromium plating

    4. Dispersing disk: PU coated 304 stainless steel

    5. Feeding and discharging end covers on the cylinder: 304 stainless steel

    6. Turbine centrifugal separator: 304 stainless steel

    This series from 5L to 300L of Sand Mill Machine

    "SUPER" SP series of Bead Mill
    Type

    Working Volume

    (L)

    Power

    (kW)

    Grinding Beads

    (mm)

    Throughput

    (kg/h)

    SP557.50.3-3.020-200
    SP1515150.3-3.050-500
    SP3030300.3-3.070-700
    SP5050370.3-3.0100-1000
    SP100100550.3-3.0300-3000
    SP250250750.3-3.0450-4500
    SP300300900.3-3.0550-5500

    The detailed production show of Sand Mill Machine:
    The company advantages:

    Has Long history and plentiful experiences with 28 years

    Master the core technology of dispersing and grinding

    With imported four –axis Haas machining center

    With ISO9001 certification and more than 11 patents of sand mill


    The packing and delivery :firstly anti-abrasion film and packed in wooden boxes) ,then FCL or LCL container by Seashipping

    FAQ:

    Q1: Are you a trading company or manufacturer?

    A1: We are the manufacturer.

    Q2: Where is your company and factory located? How can I visit you?

    A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

    Q3: Do you have own R&D team?

    A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

    Q4: How about the quality?

    A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

    Q5: What is your after-sale service?

    A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

    Q6: How is the payment?

    A6: Firstly paid the deposit, then paid the balanced before shipping.

    Q7: How is the package and delivery?

    A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.


    If need more detailed and price, please contact us and also warmly welcome to visit us!

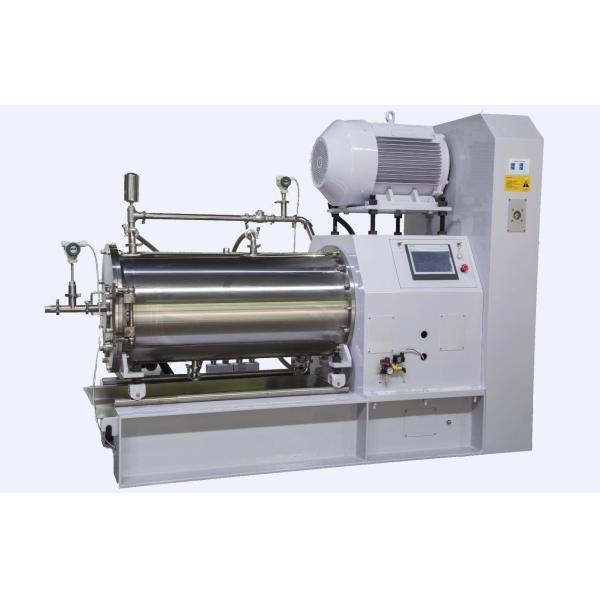

    Quality 200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral for sale
