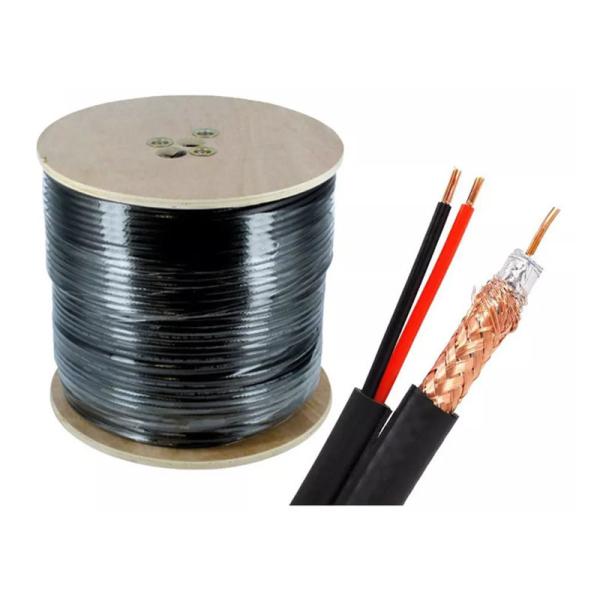

RG59 B/U 2C 0.50 CCA Figure 8 Coaxial cable with 2 power cable of made in China

Add to Cart

RG59 B/U+ 2C0.50 CCA Figure 8 75 Ohm CCTV coaxial Cable NO.7102037


Construction Parameters:
Inner Conductor	0.58mm Bare Copper
Dielectric	0.144"/3.66±0.05mm Solid Polyethylene
Shield	0.12mm CCA-Braid(95%)
Jacket	0.236"/6.00±0.1mm PVC/PE/LSZH
Power Wire Conductor	2x(16*0.2mmCCA )
Power wire Diameter of insulation	0.075"/1.9mmHDPE (Red,Black)
Jacket	5.05mm PVC/PE/LSZH
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 65.26 Ohms/KM
Inner Conductor Resistance	The Max. at 20℃ shall be < 65.26 Ohms/KM
Capacitance	67±2 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.66
Sparker Test (VAC)	3

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	6.0×5.05mm

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
1	0.64	1.96
10	1.18	3.61
50	2.58	7.87
100	3.66	11.15
200	5.27	16.07
400	7.53	22.97
700	10.44	31.83
900	11.93	36.40
1000	12.89	39.30








Order Informations:
Marking	HELLOSIGNAL RG59 B/U+ 2C0.50 CCA Figure 8 CCTV COAXIAL CABLE 7102037 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
