Portable Metal Plastic Tag Key Chains Pen Portable Small Fiber Laser Marking
Machine
Product Description:
This fiber laser engraving machine same as other fiber laser
marking machine, can do quickly and permanently mark of text,
picture, serial numbers, bar codes, QR code, for all metal material
and part nonmetal material. It mainly use for mark on tools, metal
parts, jewelry, firearms and industry polymers. Many users buy it
as animal ear tag laser marking machine, jewelry laser marking
machine, led bulb laser marking machine, etc.

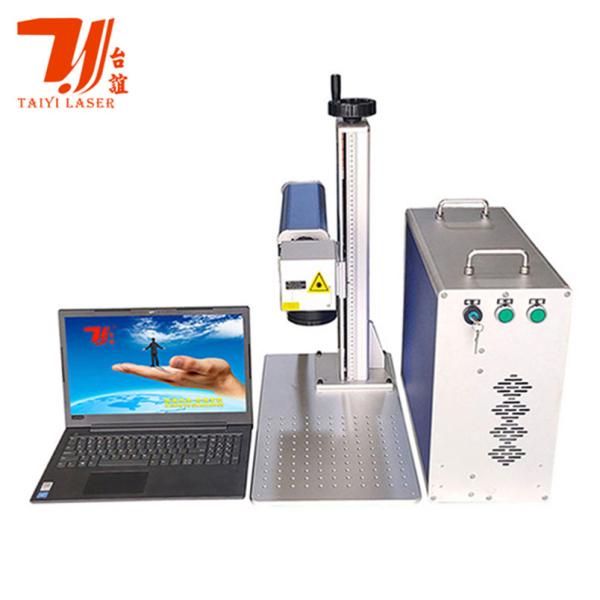

Desktop Fiber Laser Marking Machine is designed for flexible laser
marking. The desktop marking machine can match multiple power laser
source. Its light-sealed optical block do well in dust-proof and
anti-vibration. The double guide bar lifting mechanism has more
stable performance. Besides, The internal devices have good ground
connection and anti-interference ability.
Features:
The desktop laser marking machine is safer and more reliable with
integrated designed cabinet.
● The compact desktop design;
● Delicate marking with superior laser beam;
● Fast speed laser marking;
● Stable output power, high reliability, 24 hours continuous
operation ;
● Advaced marking software;
Applicable Industry:
It is widely used in electronic components, hardware, electrical
industry, daily consumer goods, sensors, auto parts, 3C
electronics, crafts, precision apparatuses, gifts and ornaments,
medical equipments, high-low-voltage appliances, bathroom
accessories, battery industry, IT industry, etc.
Applicable materials:
1. Metal: Aluminum, silver, brass, copper, stainless steel, gold,
iron, steel,Titanium,coating material, anodized or treated
metal,etc.
2. Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS,
leather, electroplating materials, coating materials, epoxy,etc.
Technical Parameters:
| Laser power | 20W 30W 50W optional |
| Laser source | Raycus JPT MAX IPG Optional |
| Control board | BJJCZ |
| Control software | JCZ Ezcad |
| Laser lifespan | 100,000 hours |
| Laser beam | 1064nm |
| Optical quality | m2≤2 |
| Repeat frequency | 20khz-100khz |
| Marking speed | ≤7000mm/s |
| Marking range | 110mm*110mm standard (optional) |
| Min.Line | 0.01mm |
| Repeat precision | ±0.003mm |
| Power consumption | ≤800w |
| Voltage | AC220V 50Hz |
| Cooling mode | Air cooling |
| Supported characters | Any fonts downloaded on computer |
| Supported format | DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc.. |
| Supported Bar code | CODE39, EAN, CODE128, Data Matrix, PDF417 etc.. |
