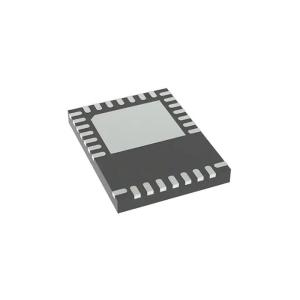

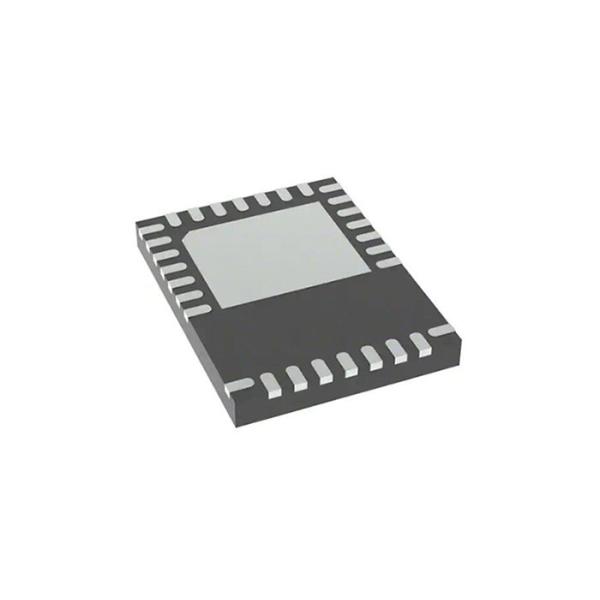

NV6125 Fast Charging Chip 650V 8A QFN30 Power Management IC

    Buy cheap NV6125 Fast Charging Chip  650V 8A QFN30 Power Management IC from wholesalers

    Buy cheap NV6125 Fast Charging Chip  650V 8A QFN30 Power Management IC from wholesalers
    • Buy cheap NV6125 Fast Charging Chip  650V 8A QFN30 Power Management IC from wholesalers

    NV6125 Fast Charging Chip 650V 8A QFN30 Power Management IC

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : NV6125
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    NV6125 Fast Charging Chip 650V 8A QFN30 Power Management IC

    Fast Charging Chip NV6125 650V GaNFas Power IC 8A QFN30 Power Management IC


    Product Description

    NV6125 is a thermally-enhanced version of the popular NV6115 650 V GaNFast™ power IC, monolithically-integrated gate drive, enhanced thermals when using CS resistor, optimized for high-frequency and soft-switching topologies.


    Specification Of NV6125

    Part Number:NV6125Rds On (Typ):175mOhm
    Input Type:Non-InvertingContinuous Voltage Rating:650V
    Wide VCC Range:10V To 30VOperating Temperature:-40°C ~ 125°C (TC)


    Simplified Schematic


    Features

    • Thermally-enhanced version of NV6115
    • Large cooling pad
    • 2 MHz operation
    • Enhanced thermals when using CS resistor
    • Programmable turn-on dV/dt
    • Small, low-profile SMT QFN
    • 6 x 8 mm footprint, 0.85 mm profile
    • Minimized package inductance
    • Low 175 mΩ resistance
    • Wide VCC range (10 to 30 V)
    • Zero reverse recovery charge
    • ESD protection – 2 kV (HBM), 1 kV (CDM)
    • Monolithically-integrated gate drive

    Inductive Switching Circuit


    Applications

    • Wireless power
    • Solar Micro-inverters
    • Half bridge
    • Full bridge
    • LED lighting
    • TV SMPS

    Typical Application Circuits


    FAQ
    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
