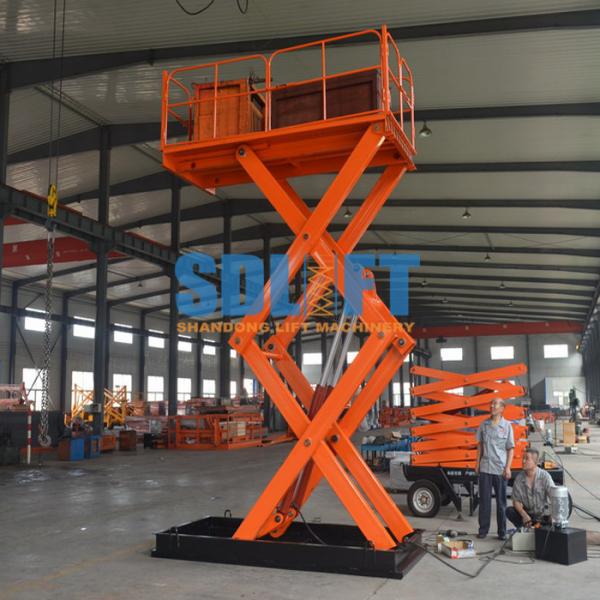

stationary portable hydraulic lift table pallet scissor lift
platforms With CE:
Application:
- The pallet scissor lift platforms are convenient, efficient and
safe ways to transport cargo from one floor to another.
- Operation is easy. There are 3 sets control system installed on
the scissor lift platforms, 1 control box below, 1 upper controller, and 2 remotes that can
be operated beside work platform.
Product parameters:
1) load capacity : 2000kgs
2) platform size : 2m x 1.5m
3) travel height : 4m
4) structure : high-strength Manganese steel
5) power : 380v/3ph/50hz/3.0kw
6) Installation : underground , into a pit
Safety:
1) The scissor lift platform equipped with anti-skid plate to
prevent slipping for safe.
2) The guardrails are equipped to guarante safety of the cargo.
3) The scissor lift platform has hydraulic overload protective
organization to ensure the lift will not work when the load beyond
its rated load capacity.
4) The scissor lift platform equipped single control solenoid
valves to prevent the platform dropping if power failure. You can
open the manual dropped valve to lower the platform to the home
position.
Factory pictures:
The models we supplied for clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
| SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The hydraulic scissor lift platform can be customized as your
detailed size. |
The parts showing:
The customers visiting:
Our services:
1) The pallet scissor lift platform can be done as your request
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4) English manual for car lift installation , using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults
during warranty time.
7) Supply 24-hours technical assistance by email, telephone or
skype.
8) Engineers are available to your country if necessary.
