4 Channel Optical Power Meter Power Range +10 ~ -65dBm/+25 ~ -50dBm

2/4 Channel Power Meter Power Range +10 ~ -65dBm/+25 ~ -50dBm

UC8202 2Channel Power Meter

An overview of the

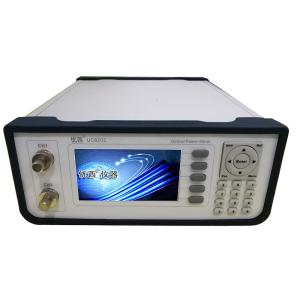

UC8202 dual-CHANNEL OPTICAL POWER METER is an upgraded version of high precision and wide range optical power measurement instrument from Guangzhou Youxi Company. The instrument provides two independent power meter channels, which can be used for direct measurement of optical power and relative measurement of optical attenuation loss.

UC8202 dual channel optical power meter can be equipped with bare fiber fixture, the test is more convenient and fast, large size HD LCD display measurement parameters, the panel button directly set the parameters, the operation is very simple. The power meter adopts a new data acquisition and processing method, with a larger power measurement range, faster response speed, higher stability.

User Interface Description

Front Panel of the host
Take UC8202 desktop as an example:

Display

The LCD displays real-time measurements of optical power, operating wavelengths, power reference values, and average time values for both channels.

The keys

The control operation and parameter setting of the power meter instrument are carried out by pressing the key.

Optical input channel
Laser signal input interface, adapter can choose standard FC/PC or FC/APC adapter connection, specified by the customer when purchasing the product.

Rear Panel of the host

The power supply requirements
The instrument complies with overvoltage class II regulations. The operating voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the operating voltage is 115V, the maximum consumption current is 230mA; When the operating voltage is 230V, the maximum consumption current is 120mA.

USB port
USB interface is a standard 4-core B-type interface, which can be connected to the instrument and PC, and the instrument can be controlled by monitoring software.

USB connection cable
The length of the USB cable cannot exceed 5 m. Otherwise, only a third-party USB peripheral extender can be used. Generally, the maximum extension length can reach 50 m.

RS232 serial port
The serial port parameters of the instrument are set to a fixed value. The serial port parameter Settings of the computer must match the instrument parameter Settings.

"To do import substitution, to create national brand" is the journey that Uc Instruments is brave to climb and the goal of continuous progress.

Guangzhou UC Instruments., Co. Ltd. was founded in March 2009 and has been recognized as a high-tech enterprise in Guangdong Province.

Guangzhou UC Instruments., Co. Ltd. is willing to join hands with chip manufacturers, device manufacturers, equipment manufacturers, communication operators and data centers in the optical communication industry, as well as teaching and research units in the industry, to create a brilliant industry. To provide industry users with "UC" independent brand measurement instrument products and services, and automated test system customization services.

We warmly invite customers to choose our products and services. We will try our best to do a good job in the spirit of craftsmanship in our products, with enthusiasm to do a good job in our services, and strive to become the majority of users in the field of product measurement and testing strong backing.

The full range of Youxi instrument products are:

8 series passive measuring equipment: light source series, optical power meter series, optical attenuator series, plug back loss meter series and optical polarization generator and optical switch series, etc.

9 series of active measuring equipment: BER series, optical oscilloscope series, clock recovery instrument series, LIV measuring system and 10G/100G/400G optical module test and evaluation board series.
