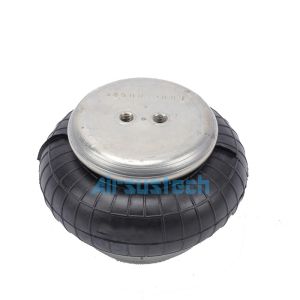

Phoenix SP1B04/SP 1B 04/SP 1 B 04 Replacement Rubber Single
Convoluted G1/8 Air Inlet Air Spring
Refer Number
Contitech: FS 40-6 1/8 M8
Contitech: FS40-6 1/8 M8
Contitech: FS 40 6 1/8 M8
Contitech: FS40 6 1/8 M8
Phoenix: SP 1 B 04
Phoenix: SP1B 04
Phoenix: SP1B04
Weforma: WBE 100-E1
Weforma: WBE 100 E1
Weforma: WBE 100E1
Weforma : WBE100-E1
Weforma : WBE100 E1
The detailed Specifications and techical parameters
The Max. Diameter: 145mm
Air hole/air inlet: G1/8
Working stroke: maximum 110 mm to minimum 50 mm
Top plate screw (nut) teeth: M8×1.25
Bottom plate screw (nut) teeth: 2 x M8×1.25
Top cover diameter: 90 mm
Bottom cover diameter: 90 mm
Screw center distance: 20 mm
The air hole distance between the nuts: together
Min. pressure: 0 bar
Return force to min.height: ≤120N
Overall weight with clamped plates: 0.9kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 90mm, minimum 70mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
| Spring rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 |
| Natural frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
Height H[mm]
| 100 | 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 3.4 | 0.6 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 |
| 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 |
The reated picture
Guomat Air Springs Production Line
Air spring is an industrial accessory that can function as support,
buffer, braking, height adjustment and angle adjustment. The air
spring can keep the natural vibration frequency unchanged under any
load, can bear radial and axial loads at the same time, and can
also transmit a certain torque, and different bearing capacities
can be obtained by adjusting the internal pressure.
1. Rubber mixing: exercise and rubber processing
2. The production of rubber bellows: bellows is made of inner is a
layer of rubber, the middle is two layers of cord fabric and the
outside is a layer of rubber. Through the fixed mold them together.
3. Other forming accessories: plastic parts, iron base, aluminum
base, iron plate, and other hardware accessories, these parts have
been made in different moulds.
4. The bellows and other accessories are gotten together by machine
and make out air spring.
5. Air tightness detection: each production of good air spring
fills the air, and then put into the water to test whether the
bubbling gas leakage.
6. Quality: blasting test, fatigue test, the air spring blasting
pressure GUOMAT factory is up to 30 atmospheric
pressure, fatigue to reach 3 million times, meet the international
standards.
7. Packing: the qualified products for packaging, are usually
carton packaging, need some special strong wooden case packing,
others are labeling packaging according to customer's requirements.
