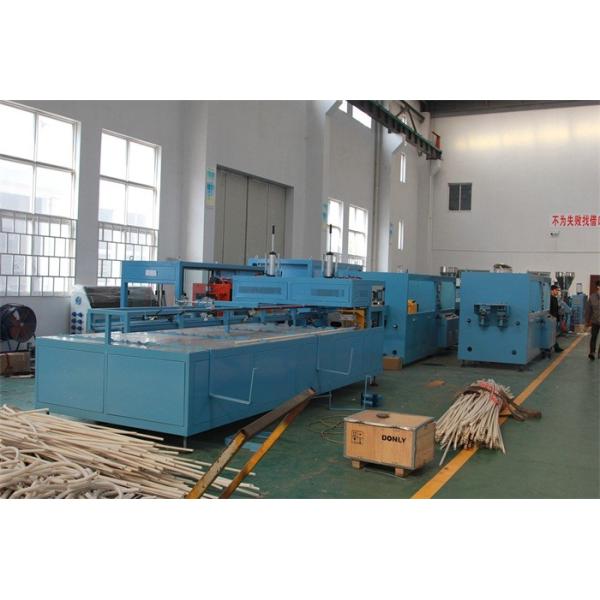

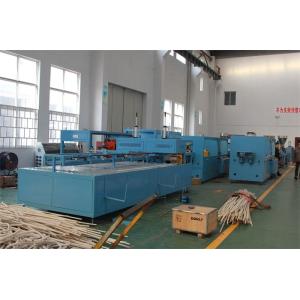

Customised Electrical Conduit Plastic Pipe Making Machine 250Kg/H

Twin screw extruder 16-63mm PVC Electrical Conduit Double Pipe Production Line

Layout:

PVC Raw material+additive→Mixing Unit→Auto Feeder→Conical Twin-screw Extruder→-Moulds→Vacuum calibration tank→Haul-off→Cutting Machine→Stacker

Summary:

1. Maximum Capacity: it can reach 5-7 ton per 24 hours according to the formula of CACO3

2. Water supply:≤25℃,≥0.3Mpa

3. Air supply:5-6m³/min,>0.5 Mpa

4. Temperature:0-40℃

5. Humidity:95% no condensation

6. Installation power:89kw

7. Total Length:21 meters

Applications:

1. Electrical piping system

2. Underground duct

Features specifications:

1. It produces twin pipe of two different diameters at the same time out of one mould.

2. Results in high production (125 kg/hr – 200kr/hr) even for smaller sizes of pipe.

3. Special conical twin screw extruder can take high filler loading as compared to parallel twin screw extruder.

4. Counter rotating conical twin screw machined on CNC make thread milling machines by simulation software for better performance

5. Bi-metallic screw & barrel can be provided for getting two-three times more lifespan than nitrided screw & barrel.

Main technical parameter:

Zhangjiagang Beisu Machinery has a professional and dedicated after-sales service team to provide customers with a full range of responsible and reliable service. Our customer service work is divided into three phases: pre-sales program discussion and design, production tracking and installation and commissioning, and after-sales service and maintenance.

Pre-sales program discussion and design:

According to the customer's actual crushing or processing line requirements, provide customers with the corresponding professional knowledge explanation; at the same time, our engineering team selects the equipment model for you, customizes the most reasonable and effective crushing scheme, and ensures the perfect combination of our equipment and site layout. Create the greatest value and leave you carefree.

We provide customers with the design of the production line process, and truly design a satisfactory and reasonable production line for customers. Often, in order to meet the special needs of our customers and achieve the best results, we will make non-standard design changes to our products and treat every customer with care.

BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer , crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.

BEISU Machinery is a technical manufacturing plant specializing in the manufacture of plastic recycling、granulation、 shredding、crushing, grinding and mixing. The main equipment includes plastic extruder, plastic granulator, plastic shredder, plastic crusher, plastic pulverizer, plastic mixing equipment, plastic feeding system and other plastic extrusion recycling production equipment. Provide complete turnkey projects for waste plastics, pipes, profiles, plates, wood-plastic, rotational molding, dip-molding, color masterbatch, rubber, aluminum-plastic and other applications.

At present, the "BEISU" machinery brand has covered the world such as Thailand, the United States, Saudi Arabia, Bangladesh, Pakistan, the United Kingdom, Chile, Poland, India, Mexico, Russia, Nepal and so on.

Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2: Supply of raw materials, transformers, air compressors and other procurement plans

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
