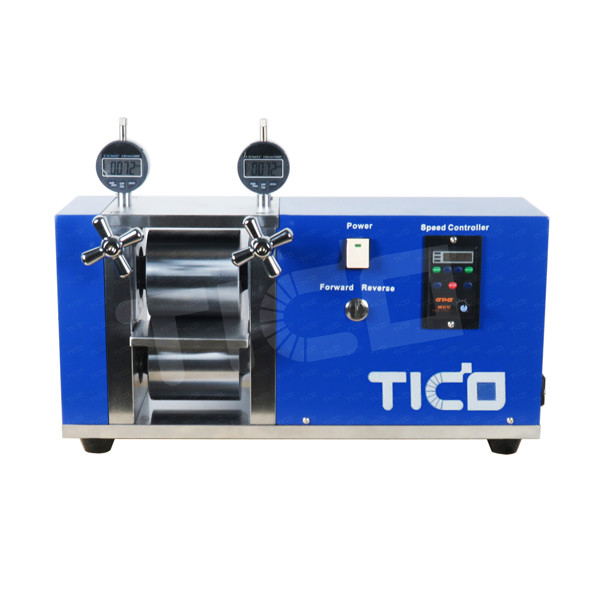

    Electronic Calendering Roll Press Machine with 100mm Width Roller

    Electronic Calendering Roll Press Machine with 100mm Width Roller


    Brief Introduction


    This product is used for electric rolling press of battery materials in the laboratory, like gold and silver precious metal materials, copper and aluminum non-ferrous materials. It is especially suitable for reducing battery electrode thickness and increase density. It utilizes a gear-driven system to accomplish the roller pressing process. The roll press thickness and speed can be easily adjusted to suit various requirements.


    Features


    ● Pressing thickness is adjustable and digital display.

    ● Rolling pressing speed is digital display.

    ● Vertical rollers installation design for convenient feeding and pressing for strip material.

    ● Forward & backward are available.

    ● Electric pressing makes uniform pressing force.


    Technical Parameter


    ModelSTC-DDG-100
    VoltageAC220V±10%, 50Hz
    Power0.2KW
    Operation modeElectric
    Feeding speed0 ~ 40mm/s
    Roller width0~100mm
    Roller diameterφ96mm
    Roller hardness>HRC62
    Pressing thickness0~3mm adjustable
    Roller cylindricity≤ ±2µm
    Roller smoothness> 0.4
    GearGrinding grade
    Roller placementVertical
    DimensionL520 * W220 * H350mm
    Weight50kg

    Warranty


    1 year warranty with lifetime support.


    FAQ


    1. Are you a manufacturer?


    A: Yes, our factory is located in Shenzhen, China.
    We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.


    2. Do you accept customized product?

    A: Yes. Most of our products can be customized to meet different requirements.


    3. Will you provide test video before dispatch?

    A: Yes, we take test video for every equipment before dispatch, which will display how to use it.


    4. Can you offer overseas installation service?

    A: Yes, we can dispatch professional engineer for on-site installation service.
