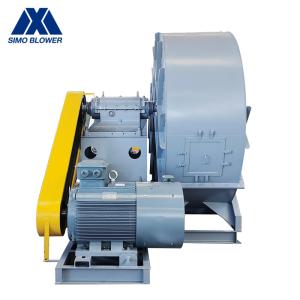

16Mn V-Belt Driven Cement Fan Abrasion Resistant Building
Ventilation
Introduction
G4-10 and Y4-10 series ventilation and induced draft fans are
suitable for the ventilation and induced draft fan systems of
2~670T/h steam boilers in thermal power plants.
It can work stably at a high medium temperature, and can output a
large gas flow with low noise when the pressure requirement is met.
The impeller is annealed to eliminate the internal stress generated
during welding, ensuring that the impeller does not undergo creep
and cracks.
Detail introduction
1. In the case of a monolithic bracket, the installation is very
simple and requires little support from a professional technician.
2. Motor sliding guides are provided for easy tensioning of the
belt to reduce energy loss due to belt slack.
3. It has large flow and low noise, more use in building
ventilation, ventilation and drying of materials, air purification
and industrial waste gas treatment, industrial dust collectors, air
purification and discharge in hazardous working environments(Paper
production line, electrolytic aluminum production line, textile
factory...). Blasting of boilers and brick kilns, transport of
various gases, transport of granules/powders/debris/fiber
materials, etc.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
|---|
| 4-10 | 8C | 1450 | 2104～1400 | 16156～30993 | 18.55 |
| 9C | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 |
| 10C | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 |
| 11C | 730 ~ 1450 | 669 ~ 4003 | 21144 ～ 80570 | 11 ~ 90 |
| 12C | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 |
| 14C | 730 ~ 1450 | 1086 ~ 6541 | 43591 ～166100 | 37 ~ 315 |
| 16C | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 |
| 18C | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 |
| 20C | 580 ~ 960 | 1400 ~ 5837 | 100970 ～ 320610 | 110 ~ 520 |
| 22C | 480 ~ 960 | 1216 ~ 6865 | 116000 ～ 434000 | 140 ~ 850 |
| 25C | 480 ~ 730 | 1579 ~ 5138 | 171000 ～ 484000 | 165 ~ 700 |
| 28C | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 |
| 29.5C | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
Product Features
1. The V-belt drive makes your fan to operate at the optimum speed.
Installation is simple and does not require the support of
professional technicians.
2. The motor selects the high-efficiency energy-saving motor of
China's leading motor manufacturing enterprise (can also install
the brand motor required by users), the quality is reliable, and
the energy consumption is lower.
FAQ
1,What parameters need to be provided when you design the
industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature,
local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the
medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales
service?
A: Before our cooperation, we have the professional technical team
to help you make the technical solution according to your working
condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service,
and provide lifelong follow-up services. Besides, our engineers are
available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications
and so on.
