HDPE Smooth/Textured Perforated Geocell with CE Certificate Gravel
Grids Paver Manufacturer Directly Supply
Product Introduction:

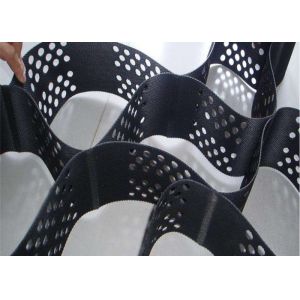

Geocell is a new type of high strength geosynthetic material which
is popular at home and abroad. It is a three-dimensional meshcell
structure formed by high strength welding of reinforced HDPE sheet
material.Due to engineering needs, some need to be drilled in the
diaphragm.During construction, it can be stretched into a network
and filled with loose materials such as soil, gravel,concrete,
etc., to form a structure with strong lateral restrictions and
large stiffness.
Product features:
1.It’s extractile,flexible to fold and convenient for
transportation.
2.It can be filled with soil, gravel,earth,macadam and so on when
being stretched into network.
3.It has light material, wear resistance, acid and alkali
resistance, anti aging.
4.It is anti-skid and anti-deformation and also has a higher
lateral limit, which can reduce the thickness of roadbed.
Laying method
Construction precautions.
① The maximum strength direction of the grid shall be consistent
with the direction bearing the maximum stress.
② Direct driving of heavy vehicles on the laid geogrid shall be
avoided.
③ The cutting and stitching amount of geogrid shall be minimized to
avoid waste.
④ During construction in cold seasons, the geogrid becomes hard and
easy to cut hands and rub knees.
Application:
It is mainly used for
1.foundation reinforcement(gruound stabilisation:)
2.soft foundation treatment,
3.steep slope protection,
4.landslide prevention,
5.load-bearing mixed retaining wall.
6.It is especially suitable for weathering forests, sand streams
and marshes.
Product Type | Height
(mm) | Welding Distance
(mm) | Thickness
(mm) | Tensile Strength of Welding Points (N/cm) | Tensile Strength of Connection of Cells(N/cm) | Tensile Strength at Yield of Each Sheet (Mpa) |
| 50≤H≤250 | 330≤A≤1000 | 1.0~1.2 | ≥100 | ≥120 | ≥20 |
| 50≤H≤250 | 330≤A≤1000 | 1.0~1.2 | ≥100 | ≥120 | ≥20 |
Textured and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
| 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥2 |
HDPE geocell type | | | Load quantity per 40'GP (Sqm) ( m2) |
Smooth Perforated and Not Perforated | | | about 16500 |
Smooth Perforated and Not Perforated | | | about 11100 |
Smooth Perforated and Not Perforated | | | about 20400 |
Smooth Perforated and Not Perforated | | | about 13600 |
