    UNS N10276 Stainless Steel Round Bar Hastelloy C276 Pipes Bright

    Ask Lasest Price
    Brand Name : BAO STEEL
    Model Number : C276
    Certification : ISO,SGS
    Price : 30 - 40 USD/Kg
    Payment Terms : L/C, T/T
    Supply Ability : 500 tons
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    UNS N10276 Stainless Steel Round Bar Hastelloy C276 Pipes Bright

    Bright Polished Hastelloy C276 Round Bar / Stainless Steel Bright Bar Diameter 4 - 100mm


    Specification of our hastelloy C276 round bar


    Products Name

    Hastelloy C276 round bar

    Finishing

    Hot rolled / Cold Drawn

    Diameter

    hot rolled bars: 10 - 250mm

    cold drawn bars: 4 - 60mm

    Length

    6m or cutting any length as request

    Standard

    ASTM EN

    MOQ

    100 kgs

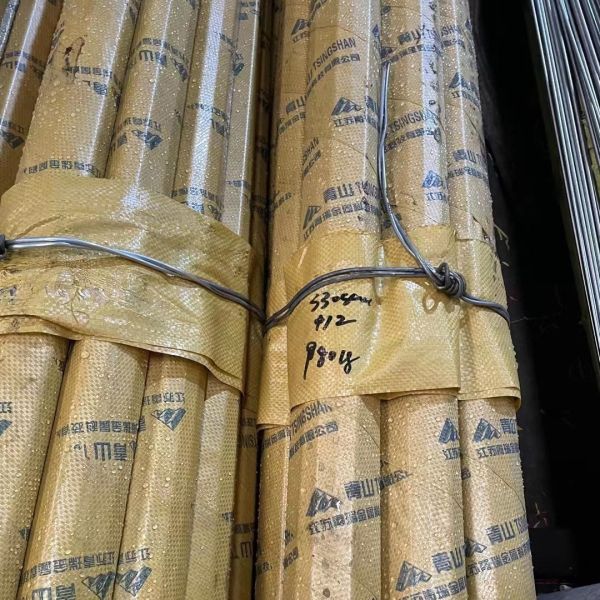

    Packing

    surround by waterproof paper and plastic foil

    Loading Port

    Shanghai Port(China)

    Certificate

    EN 10204-3.1 / CO or other certificate as request

    Other Grade

    Stainless steel: 201 303 304 310S 316L 321 2205 2507 410 420.etc

    Monel: 400 500

    Inconel 600 625 800 825.etc


    Hastelloy C276 - UNS N10276 Advanced Nickel Alloy


    Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.


    Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used.

    Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.

    In what forms is Hastelloy C276 Available at Mega Mex?

    • Bar
    • Sheet
    • Plate
    • Pipe & Tube – welded and seamless
    • Fittings
      • Elbows, tees, stub-ends, returns, caps, crosses, reducers, pipe nipples. etc.
    • Welding Wire (AWS Classifications: ERNiCrMo-4 and ENiCrMo-4)

    Corrosion Resistant Hastelloy C276

    Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits excellent resistance in a wide variety of chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion cracking.

    What are the characteristics of Hastelloy C276?

    • Excellent corrosion resistance in reducing environments
    • Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides
    • High nickel and molybdenum contents providing good corrosion resistance in reducing environments
    • Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints
    • Resistance to localized corrosion such as pitting and stress-corrosion cracking
    • One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide

    Chemical Composition, %

    NiMoCrFeWCoMnCVPSSi
    Remainder
    15.0-17.0
    14.5-16.5
    4.0-7.0
    3.0-4.5
    2.5 max
    1.0 max
    .01 max
    .35 max
    .04 max
    .03 max
    .08 max

    In what applications is Hastelloy C-276 used?

    • Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
    • Flue gas desulfurization systems
    • Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
    • Sour gas wells
    • Pulp and paper production
    • Waste treatment
    • Pharmaceutical and food processing equipment

    Fabrication with Hastelloy C-276

    Hastelloy C-276 alloy can be forged, hot-upset and impact extruded. Although the alloy tends to work-harden, you can have it successfully spun, deep-drawn, press formed or punched. All of the common methods of welding can be used, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is for use in corrosion service.

    Hastelloy C-276 Welding Material

    Alloy C276 welding products are used as matching composition filler material for welding C276 alloy wrought and cast products, for dissimilar welding applications including other nickel-chromium-molybdenum alloys and stainless steels, and for weld overlay or cladding of steels.

    Specifiacations: ASME-SFA-5.14 ERNiCrMo-4

    Forms of C276 Filler Metal Available at Mega Mex

    • .031 in or .8 mm in diameter
    • .035 in or .9 mm in diameter
    • .039 in or 1.0 mm in diameter
    • .045 in or 1.1 mm in diameter
    • .047 in or 1.2 mm in diameter
    • .062 in or 1.6 mm in diameter
    • .078 in or 2.0 mm in diameter
    • .093 in or 2.4 mm in diameter
    • .125 in or 3.2 mm in diameter

    ASTM Specifications

    Pipe SmlsPipe WeldedTube SmlsTube WeldedSheet / PlateBarForgingFittingWire
    B622
    B619
    B622
    B626
    B575
    B574
    B564
    B366

    Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product FormTensile (ksi).2% Yield (ksi)Elongation %
    Bar
    110.0
    52.6
    62
    Plate
    107.4
    50.3
    67
    Sheet
    115.5
    54.6
    60
    Tube & Pipe
    105.4
    45.4
    70
