Laboratory Universal Tensile Testing Machine / 1 ~ 20KN Computer
Servo Control
Application:
Tensile Testing Machine is an electrically operated machine that is
used for testing tensile strength and elongation of materials like
plywood, wires, cables, conductors, ferrous and non-ferrous
materials.
Corresponding Standard:
ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7
,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T
17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM
D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T
2358,QB/T 1130 and other standards.

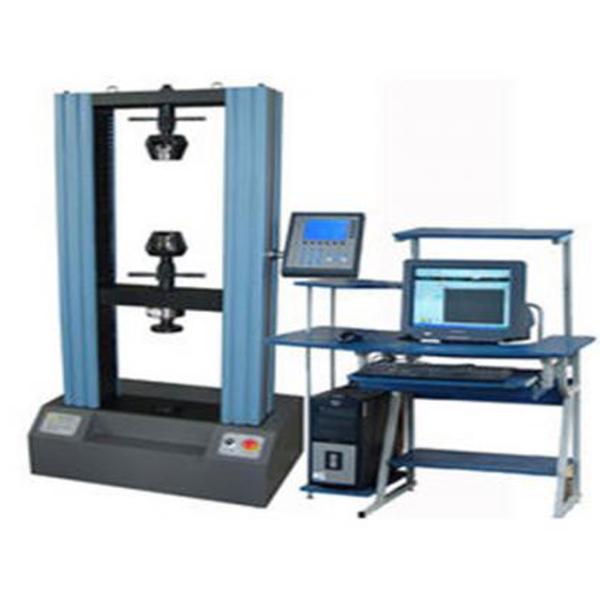

Front View of Universal testing machine laboratory apparatus
textile fiber tensile test machine/rubber tensile tester
Features:
1. Force value and deformation can display at the same time.
2. Drive by servo motor, stand-alone can sent testing speed
directly.
3. Press Start button the machine will testing automatic after
setting.
4. After finishing testing, it can self-return.
5. Fast disassembly joint, can use different kinds grips.
6. Single button testing function, easy operation
7. Direct-connected to printer, print out report.
Technical Parameters:
| Model | GSA-1200-A |
| Capacity (Kg) | 50,100,200,500,1000,2000,5000,10000,20000 |
| Load Accuracy | 0.5% |
| Load Resolution | 1/100,000 |
| Valid Width (mm) | 400 |
| Max. Route (mm) | 1000(not including clamp) |
| Test Speed (mm/Min.) | 0.1~500(1000) |
| Speed Accuracy | ±0.5% |
| Motor | AC servo motor |
| Volume WxHxD (mm) | 1750x3310x1220 |
| Weight (Kg) | 300 |
| Power | AC220V, 1ph 3 lines; AC380V, 3ph 5 lines
|
Main feature:
Adopted photoelectric encoder to measure the displacement, the
controller uses the embedded single-chip microcomputer structure
with multi-function software, which combined with measurement,
control, calculation and storage. It can automatic calculate the
stress, rate of elongation (need to add with extensometers),
tensile strength, elastic modulus, automated statistical results;
automatically recorded the biggest point, breaking point, the
designated point value or the rate of elongation; Using computer to
display the dynamic curves in the testing process and process the
data, After testing, it can re-analysis and editing the data by
amplifying the curves through the graphics processing module,
printing reports, product performance reached the international
advanced level.
Customer Support Services:
1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO
requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
