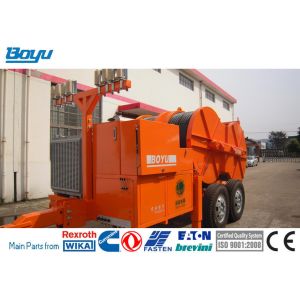

Power Line Tension Stringing Equipment Construction With Water Cooling System Engine

    Buy cheap Power Line Tension Stringing Equipment Construction With Water Cooling System Engine from wholesalers

    Buy cheap Power Line Tension Stringing Equipment Construction With Water Cooling System Engine from wholesalers
    • Buy cheap Power Line Tension Stringing Equipment Construction With Water Cooling System Engine from wholesalers
    • Buy cheap Power Line Tension Stringing Equipment Construction With Water Cooling System Engine from wholesalers

    Power Line Tension Stringing Equipment Construction With Water Cooling System Engine

    Ask Lasest Price
    Brand Name : BOYU
    Model Number : TY4x50
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    Power Line Tension Stringing Equipment Construction With Water Cooling System Engine

    Tension Machine For Power Line Construction With Water Cooling System Engine


    ModelBull-wheel diameterMax conductor diameterMax optical fiber cable diameterGroove widthGroove numberTotal weightOverall damension
    mmmmmmmmkgmm
    TY1X7.51100242122018502300*1250*1620
    TY1X201300402155519204080*1930*2300
    TY1X20II800234559502400*1500*1650
    TY1X20III80022.555511502500*1500*1700
    TY1X301300402160520643700*1950*2150
    TY1X401300402155534304000*2000*2300
    TY1X501300/1500552168624004000*1900*2300
    TY140IV15004016100005500*2280*2700
    TY2X351300402x545004300*2250*2700
    TY2X401300/1500402x562304300*2250*2700
    TY2X501300/1500402x560004700*2300*2700
    TY2X701700402x675004700*2300*2700
    TY2x70IV1500402x8100005500*2280*2700
    TY2X901900502x675005400*2300*2700
    TY4x501500404x5130005900*2300*2700

    Performance

    Max tension: 4x50(2x100) KN

    Max continue tension: 4x40(2x80)KN

    Speed at max continue tension: 2.5km/h

    Max feeding speed: 5km/h

    Max reverse pulling speed: 1.25km/h

    Corresponding tension: 4x20(2x40)KN

    Max reverse pulling force: 4x40kN /2x80kN


    EngineDiesel: 77kw(103hp)
    Cooling system: water
    Electrical system: 24V

    Configuration

    4 negative self-acting hydraulic brakes

    4 digital speed and meters counter

    4 hydraulic dynamometers

    Hydraulic oil cooling system

    Control instruments for hydraulic system and diesel engine

    Hydraulic front and behind stabilizer

    Grounding connection point

    Rigid axle for towing at max speed of 30km/h with parking brake

    Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor


    Additional Devices

    Lighting system for the trailer

    Air brake system for the trailer

    Digital speed and meter counter

    Trailer for towing at max speed of 30 km/h

    4 swivel guide rope roller

    4 hydraulic conductor clamps for drum change operations (extra change)

    2 hydraulic behind stabilizers and 1 front sabtilizer
