Holdback One Way Overrunning Clutch Bearings CSK6005 CSK6006 CSK6007 CSK6005PP

CSK6005 CSK6006 CSK6007 CSK6005PP Holdback One Way Overrunning Clutch Bearings

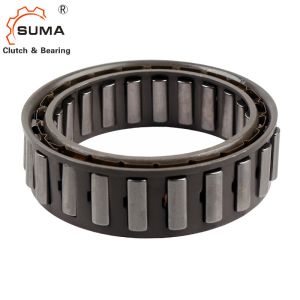

Fearures of sprag one way clutch bearings

The CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction.

CSK Clutches are typically special machine elements:

When rotating in one direction, there is no contact between the inner and outer rings, i.e. the one-way clutch is free to rotate.
When turning in the other direction, the inner and outer rings are in close contact, and the one-way clutch can transmit high torques.

In addition to the basic CSK model, type CSK..P features a keyway on the inner race.

For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

Dimensions and Capacities

Changzhou Suma Precision Machinery Co., Ltd was established in 2005, which was a professional and non-stop manufacturer for mechanical parts, integrates into R&D, Design, Manufacturing and Sales .

The main Catagories are :

One Way Clutch Bearing:  CSK, ASNU, AS , NF, FE, DC, FWD, BWC, AXK, AA, B200, BB, CKA, ...

Backstop Clutch : BS, MZ, FSO, HPI,  PB, BS...R, NJ, NYD, NF, CKZ, RSBW, AV , ...

Overrunning clutch:  FXM,  GFR, RSCI, RSXM, CKL-A, CKF-A, RSBI, GFK, GV, GVG, BSEU, ...

Needle Roller Bearings: HF,HFL, RC, RCB, FC, FCB, OWC, EWC, 1WC, HK, SCE, BCE, IR, ...

Cam follower bearings : CF, KR, CFE, CFH, CYR, CYR...S, NATV, NATR, NUTR, KRV, RSTO, ...

Spherical Plain Bearings : GE, GE...ES-2RS, GE...DO-2RS, GEG...ES-2RS, GEEW...ES-2RS, GE...UK-2RS, GE...ET-2ES, ...

Advantage of Company

• ​Germany Technology Introduction ensure goods reach an top-level quality .
• Core Technical Team ensure ability to Find out - Work out problems more efficiently .
• Over 15 Years Production Experience makes us easier to find out a solution from any industrial field .
• Superior Equipment Production Line ensure goods produced under strictly quality control .
• OEM / ODM available significantly save the customer's funds and enlarge the benefits.

Advantage of Products

• High Torque Transmission
• High Load Capacity
• Preferable Wear Resistance
• Free Sample Quality Test Service （specially for small standard item）
• Pre-Lubricated ensure its Long Life Using Time

Application Field

  With a wide range of variety  ( Over 100 different patterns and more than thousands sizes available ), products are widely used in Printing Machine, Packaging Machine ,Conveyor System, Bucket Elevator, Gearbox , Reducer, Gearmotor, Electronics Toy, Hydraulic System and any power transmission industrial field.

Market

  With over 13 years experience, well equipped testing facilities and strict quality control, Changzhou Suma Precision Machinery Co., Ltd products sell well all over the world, the main markets are European, America, Canada, Brazil, India, Asia, etc . It was a certified enterprise with Quality Management System ISO9001:2015, SGS , Safety Certificate of Approval for Mining Products . In the meantime, with accurate control of key process and technical support from engineer team, customized products are also available. Stable product performance and reliable after sales service always are our only way to win customer.
