PP PE PVC Corrugated Pipe Corrugated Pipe Production Line Making
Machine SIngle Wall Pipe Extrusion Line
Product Description

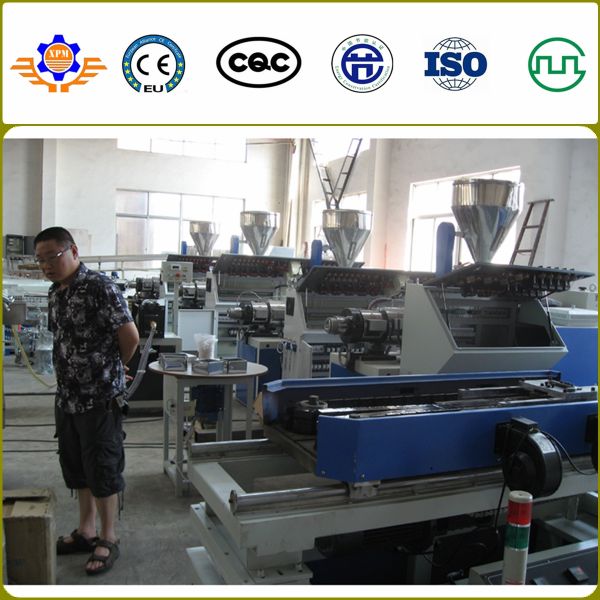

SaiJia Single-Wall Corrugated Pipe Extrusion Line
Used for producing wires and cable passing pipes , washing machine
drain pipes , dust collector pipes and ventiducts .
| Main Technical Parameters |
| Model | XPM 25 | XPM 32 | XPM 63 |
| Die Block(Couple) | 44 | 44 | 44 |
| Pipe Diameter Range(mm) | 8-25 | 16-32 | 20-63 |
| Production Speed(m/min) | 4-10 | 2-7 | 1-6 |
| Output(kg/h) | 8 | 30 | 60 |
Would like to know more details , feel free to send us inquiry !
SAIJIA MACHINERY
Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic
machine.The main products are popular exported to international
market,including Russia,Australia, Southeast Asia,Middle East,East
Europe.Africa and other countries.
PE PP PVC Spiral Corrugated Pipe Making Machine
Main uses of plastic corrugated pipe: single-wall corrugated pipe
are mainly used for machine tool machinery and cabinet control
cabinet wiring connection, such as instrumentation, control
cabinet, equipment manufacturing, engineering installation, train,
automobile, subway, machine tool machinery, automation control and
other industries. Double-wall corrugated pipe is mainly used for
drainage pipe of municipal construction and mine seepage pipe.
The corrugated pipe machine produced by our company mainly adopt
German push-block structure. The production speed of plastic
single-wall bellows can reach 15-30 m/min and 110 double-wall
bellows can reach 4-6 m/min.
Single Screw Extruder
High production capacity of extrusion on the high quality basis.
Lower temperature plasticizing design, ensure high quality PIPE
extrusion.
Material of screw and barrel: 38CrMoAlA, nitrogen quenched
(0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
>940, the surface of screw is chromeplated Feeding bush with
water cooling system
Extrusion Die
Material :40Cr , the surface of die is chromeplated, anti-corrosive
High Speed Forming Machine
Gear driven system with high precision modules and tracks. The
track is water cooling system, it could meets 10-30m/min working
speed.It is added water cooling and fan cooling two system.
Moulds Block
Materials of moulds block:40CrThe moulds are made by CNC system, it
is high precison and long service life.
It could be designed into one hole or two hole according customer
request.
We could print customers logo into moulds according request.
Automatic coiler
No of wheel: two wheel or one wheel according customer
requestUseing delta inverter system, it is automatic adjustment of
winding speed.
Control Box
Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.specializing in the production of HDPE PP PVC PA single wall
corrugated pipe machine, double-wall corrugated pipe production
line,Equipment operation is stable, automatic production, saving
labor, efficient extrusion.
