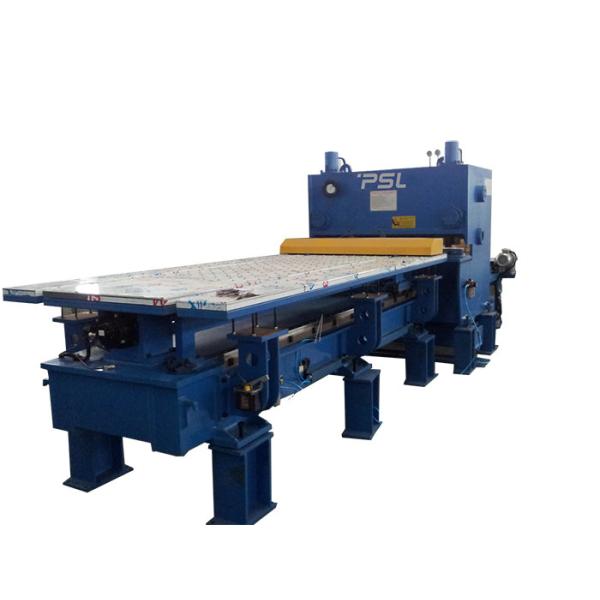

Sheet metal Automatic Servo Front feeding hydraulic Shearing and Stacking line
Features and characteristics,
1. Using computer Auto-CAD design. The full line frame, blades holder and front feeding/gauge table are analyzed by ANSYS finite element analysis software to ensure the rationality and strength of the frame and structure. The shearing line adopts all steel welded structured, vibrating treatment of aging for remove of internal stress, with good rigidity and stability.
2. Using long front feeding table, the whole process, and eliminate stress, with strong rigidity and integrity; a ball screw, flexible and reliable motion rolling guide; the elimination of the long plate deflection; pneumatic clamp, vertical rearward system, the data can be scheduled automatic feeding continuous shear.
3. This Shearing line adopts CNC controller Delem DAC310T or DAC360T or Cybelec T8 to control and drive front gauge/feeding axis (cutting length), Cutting angle, and Blades gap/clearance according to different plates thickness and length.
CNC controller DELEM DAC310T or DAC360T Shear comfort at your fingertips. It improves the shearing effective and shearing quality.
Features of Controller DAC360T
Panel based housing
- Bright LCD screen
- Back / front gauge control
- Retract function
- Cutting angle and gap control
- Stroke length limitation
- Manual movement of all axes
- Force control
- Sheet thickness measurement
- Return to Sender function
- Second and third servo axis (DAC-362T)
- Sheet support
4. Our standard machine is assemblied with normal motor. But now one new high-power servo motor can be applied to our shearing machine. Servo motor is more saving energy and environmental protection and reduce production costs.
Normal motor Servo motor
5. Advanced integrated hydraulic control system, it has good reliability. more reliable and easy for maintenance. Hydraulic system uses skin-bag accumulator as auxiliary energy, absorbs pressure impact at the same time, machine runs smoothly and has low noise.
6. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce distortion of the sheet.
Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
Specifications of Shear QC11K-4x20/3000,
| Type | QC11K-4x2000/3000 |
| Max. Cutting thickness | 4mm (Mild steel) 2mm (stainless steel) |
| Max. Cutting width | 2000mm |
| Max. Front-gauge stroke | 3000mm |
| Stroke times | 10-35/min |
| Shear angle | 0.5-2.5Degree |
| Depth of throat | 100mm |
| Height of working table | 1000mm |
| Width of working table | 500mm |
| Main motor power | 5.5kw |
| Servo motor of front-gauge power | 1.5kw |
| Oil pump | 25L/min |
| Dimensions of Shear: | 2750x1700x1900 |
| Size of front feeding table | 4500x2000x1000 |
| Net weight of shear. | 4.2Tons |
| Volt. | 380V,50HZ |
Standard configures,
| Optional model | Manufacturer | Remarks |
| CNC system | DAC310T
DAC360T | DELEM | |
| Hydraulic system | Main solenoid valves | Rexroth FIRST | |
| Front gauge | Servo motor Ball screw + Linear guider | ESTUN TAIWAN | |
| Oil pump | Inner Gear oil pump | Allead | |
| Main power | Normal motor, Servo motor (Optional) | China VEICHI | |
| Front work table | Big pallet and ball rack | PSL | |
| Security measures | Front steel fences protection Back safe sensor protection (Optional) | PSL | |
| Back supporting device | No | NO | |
| Blade clearance | Motorized adjustment by
CNC controller operating | PSL | |
| Electric parts | Schneider Relay,Contactor | Schneider | |
| Foot switch | No | No | |
| Deep throat | 100mm | | |
QC11K series main specifications,
| Model | Max. Tkn. | Yield strength | Max. Length | Angle | X.Stroke | Power | L*W*H(mm) | Weight |
| QC11K-6*2500 | 6mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 750mm | 7.5kW | 3140*1740*2040 | 4800Kg |
| QC11K-6*3200 | 6mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 750mm | 7.5KW | 3750*1770*2150 | 5800Kg |
| QC11K-6*4000 | 6mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 750mm | 11KW | 4830*1840*2150 | 7500Kg |
| QC11K-6*5000 | 6mm | ≤450kN/cm | 5000mm | 0.5-2.5° | 750mm | 15KW | 5830*1840*2150 | 13000Kg |
| QC11K-6*6000 | 6mm | ≤450kN/cm | 6000mm | 0.5-3° | 750mm | 15KW | 6480*2100*2300 | 18000Kg |
| QC11K-8*2500 | 8mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 750mm | 11KW | 3040*1700*1700 | 5500Kg |
| QC11K-8*3200 | 8mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 750mm | 11KW | 3860*1700*1700 | 6200Kg |
| QC11K-8*4000 | 8mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 750mm | 11KW | 4640*1700*1700 | 7900Kg |
| QC11K-8*5000 | 8mm | ≤450kN/cm | 5000mm | 0.5~3° | 750mm | 18.5KW | 5400*2400*2000 | 13500Kg |
| QC11K-8*6000 | 8mm | ≤450kN/cm | 6000mm | 0.5~3° | 750mm | 22KW | 6480*2100*2350 | 19000Kg |
| QC11K-8*8000 | 8mm | ≤450kN/cm | 8000mm | 0.5~3° | 750mm | 22KW | 8580*2130*2350 | 29500Kg |
| QC11K-10*2500 | 10mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 950mm | 15KW | 3040*1800*1700 | 6500Kg |
| QC11K-10*3200 | 10mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 950mm | 11KW | 3850*1830*1900 | 7500Kg |
| QC11K-10*4000 | 10mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 950mm | 15KW | 4650*2100*2000 | 11000Kg |
| QC11K-10*5000 | 10mm | ≤450kN/cm | 5000mm | 0.5~3° | 950mm | 15KW | 5750*2100*2000 | 16000Kg |
| QC11K-10*6000 | 10mm | ≤450kN/cm | 6000mm | 0.5~3° | 950mm | 15KW | 6500*2100*2300 | 24000Kg |
| QC11K-10*8000 | 10mm | ≤450kN/cm | 8000mm | 0.5~3° | 950mm | 15KW | 6800*2100*2300 | 32000Kg |
| QC11K-13*2500 | 13mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 1000mm | 15KW | 3285*1830*2390 | 7500Kg |
| QC11K-13*3200 | 13mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 1000mm | 15KW | 3855*1830*2390 | 9500Kg |
| QC11K-13*4000 | 13mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 1000mm | 18.5KW | 4850*1830*2390 | 12500Kg |
| QC11K-13*6000 | 13mm | ≤450kN/cm | 6000mm | 0.5~3° | 1000mm | 30KW | 6850*1930*2650 | 30000Kg |
| QC11K-13*8000 | 13mm | ≤450kN/cm | 8000mm | 0.5~3° | 1000mm | 30KW | 8950*2130*2850 | 46000Kg |
| QC11K-13*9000 | 13mm | ≤450kN/cm | 9000mm | 0.5~3° | 1000mm | 45KW | 9980*2130*2850 | 65000Kg |
| QC11K-13*10000 | 13mm | ≤450kN/cm | 10000mm | 0.5~3° | 1000mm | 45KW | 11050*2500*3100 | 85000Kg |
| QC11K-16*2500 | 16mm | ≤450kN/cm | 2500mm | 0.5~3° | 1000mm | 22KW | 3440*1940*2830 | 9500Kg |
| QC11K-16*3200 | 16mm | ≤450kN/cm | 3200mm | 0.5~3° | 1000mm | 22KW | 4010*1940*2830 | 11000Kg |
| QC11K-16*4000 | 16mm | ≤450kN/cm | 4000mm | 0.5~3° | 1000mm | 30KW | 5010*1980*2830 | 15500Kg |
| QC11K-16*5000 | 16mm | ≤450kN/cm | 5000mm | 0.5~3.5° | 1000mm | 30KW | 5900*2600*2830 | 25000Kg |
| QC11K-16*6000 | 16mm | ≤450kN/cm | 6000mm | 1~3.5° | 1000mm | 37KW | 6900*2600*2830 | 36000Kg |
| QC11K-16*8000 | 16mm | ≤450kN/cm | 8000mm | 1~3.5° | 1000mm | 45KW | 8900*2900*3430 | 75000Kg |
| QC11K-20*2500 | 20mm | ≤450kN/cm | 2500mm | 1~3° | 1000mm | 30KW | 3440*1980*2830 | 14000Kg |
| QC11K-20*3200 | 20mm | ≤450kN/cm | 3200mm | 1~3° | 1000mm | 30KW | 4010*1900*2830 | 17000Kg |
| QC11K-20*4000 | 20mm | ≤450kN/cm | 4000mm | 1~3.5° | 1000mm | 37KW | 4850*2600*2900 | 22000Kg |
| QC11K-20*6000 | 20mm | ≤450kN/cm | 6000mm | 1~3.5° | 1000mm | 55KW | 6700*3000*3000 | 54000Kg |
| QC11K-30*2500 | 30mm | ≤450kN/cm | 2500mm | 1~3.5° | 1000mm | 45KW | 3440*1900*2830 | 25000Kg |
| QC11K-30*3200 | 30mm | ≤450kN/cm | 3200mm | 1~3.5° | 1000mm | 45KW | 4200*1900*3000 | 34000Kg |
Remarks: If these parameters are not updated or changed in time, please understand and contact with us by Chat online or email. THANKS.
