Mini Full Electric Servo CNC Press brake ECO Bending machine 10T
600mm
Application Introduction:
1. Significant energy saving
100% ELECTRIC SERVO PRESS BRAKE = ECO-FRIENDLY! ENERGY SAVINGS!
Small power when the ram goes up without load, and almost no power
when the ram stops.
2. Environmental protection and no pollution
The pure electric servo bending machine does not use hydraulic oil,
So there is no waste oil treatment and pollution.
3. The Ram has fast speed and high production efficiency than
traditional hydraulic types.
4. High bending accuracy
5. Low maintenance cost
The transmission system of pure electric servo bending machine is
simple, there is basically no maintenance cost, and only regular
lubrication is required.

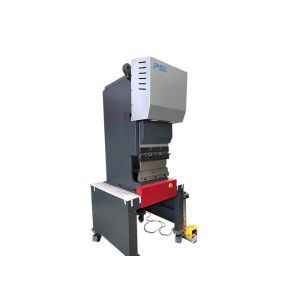

6. The Mini type Electric Servo Press Brake is installed 4 wheels,
it can move and work in anywhere easily.
Main Features:
- Structure of this Press Brake
Complete steel-welded structure; left and right houses, working table are welded into a whole frame. and then the main frame is fixed on a strong mounted platform.
Small span high rigidity slider design, rigidity is 50% higher than
ordinary slider structure.
- All-electric servo system
Adopts the most advanced full close loop servo synchronized
controlling system
The machine’s servo motors drastically reduce energy consumption,
making them environmentally friendly.In addition to this, the
motors themselves do not require hydraulic oil, ensuring a cleaner,
safer workspace.
Delem CNC system DA53T,DA58T even DA66T can be used by default and
can be customized.

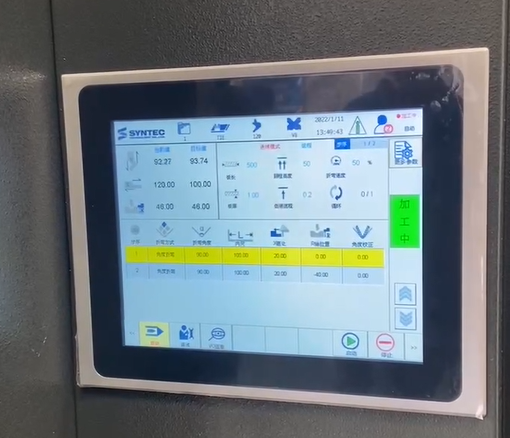

And there are also more economic choose, as LZ1000, SYNTEC.
- Angle programming|graphic programming
The user can program directly at the angle, and each step can
achieve a precise bending machine.A higher-level system with
graphical programming function is also optional
- Precision back gauge structure
The machine is suitable for the production with multi-steps of
bending with high bending accuracy. Adopt E type back gauge, with
sufficient mechanical strength and stiffness.

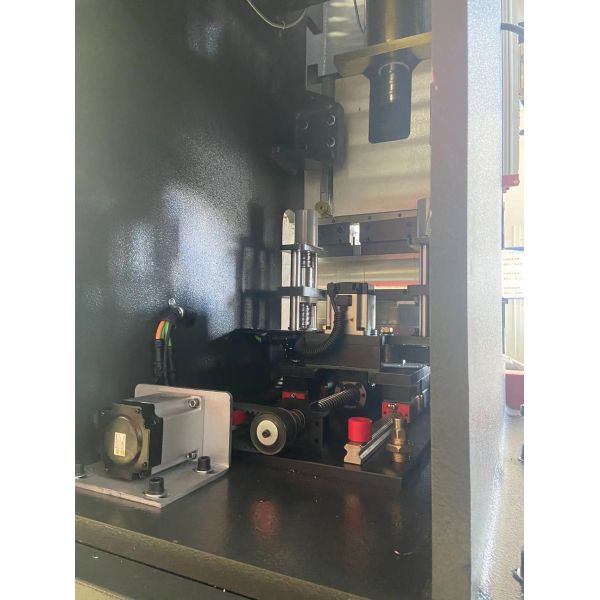

X-axis & R-axis adopt ball screw and linear guide, which is driven
by servo motors, and the back gauge is positioned quickly and
accurately.
- Upper and lower tools standard segment
The mold segments are 10, 15, 20, 30, 50, 75, 100, 300 (cm), and
the length can be customized by the user.
Segmented punch can be combined with certain length according to
the bending requirement of special workpiece.
- Reliable electrical system
Electrical component (Relay, Contactors) France Schneider
Dustproof cabinet grade IP54 to guarantee the high quality
electrical system
Function of open door and power off
High quality Estun servo motor drivers
- Laser safety guarding can be optional.
EPB series parts
| Optional model | Manufacturer | Remarks |
|---|
| CNC system | ●DA-53T
●DA-58T
●DA-66T
●DA-69T
●Syntec ●LZ 1000 | Delem
TW LZ | |
| Back gauge | ●3+1 axis
●4+1 axis | PSL
Burke | Carbon steel
Aluminum material |
| Main power system | ●Servo motor
| VEICHI
| Y axis |
| Front material | ●Simple fixed platform
●Single rail movable type | PSL |
Optional |
| Security | ● Side (guardrail) + rear (guardrail)
● Side (guardrail + laser protection) + rear (guardrail) | PSL |
Optional
|
| Deflection compensation | ● | | Needn't |
| Top tool clamping | ●Fast clamping | PSL |
|
| Lower V die | ●Double V Die | PSL | |
| Electrics | ●Schneider Relay,Contactor | Schneider | Open door power protection |
| Foot switch | ●vertical switch | Korean Kacon | |
| | | |
Adopts the most advanced full close loop servo synchronized
controlling system
