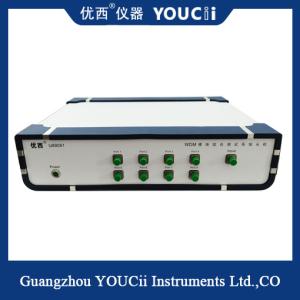

DWDM module integrated test system
The system is designed for multi-channel products with short
working wavelength, such as DWDM, AWG, MWDM, LWDM and so on.
The system integrates the scanning mode of the traditional
adjustable light source + multi-channel optical power meter with
the point light source (ITU) + optical power meter, effectively
improving the overall test of the product
Efficiency, reduce equipment input costs, labor costs.
In addition, the use of optical box to compress the station
equipment space, improve the cleanliness of the station.
In the testing process, the system is automated and processed,
which is conducive to staff training and anti-stay and anti-error.
How it works:
According to the product type, different band of adjustable light
source and ITU light source are selected, and the test
specifications of the corresponding product are set. When
operating, the instrumentation server for point measurements is
based on each parameter
The request of the client uses the algorithm mechanism reasonably
to schedule the resources of the server effectively, which can
realize the real sense of real-time parallel scanning for the
scanning parameter system.
After all parameters are tested, the system analyzes, saves and
automatically determines the test data, and displays the test
results on the test program interface.
Function introduction:
1. Applicable to DWDM, AAWG, MWDM, LWDM and other categories
Multi-channel module products;
2. Test parameters include IL,RL,PDL,CWL@NdB,BW,Ripple, etc
Conventional parameters;
3. Retain test data and results, generate and print custom shipment
reports;
4. According to the measured products, select the instrument
hardware, define the test specifications and processes;
5. Support to expand multiple stations and support
multi-temperature testing;
6. The system can be customized according to the actual needs of
customers.
Highlights:
1. Improve test efficiency: the product only needs to be connected
once, reduce the number of wiring, automatic parameter testing;
2. Reduce testing costs: reduce staff training time, reduce
equipment and personnel input;
3. Convenient on-site management: standard integrated optical path
box, less space, simple optical path connection;
4. System error prevention: the operator works according to the
prompt, the operation items are less, the system automatically
determines and calculates;
5. Test parameters comprehensive: including IL, RL, PDL, ISO,.cwl,
BW, Ripple WDM indexes such as;
6. Classification of test results: Define multiple product levels
according to the actual needs of production;
7. Test data traceability: Data is retained in the database and
local, and records can be traced for a long time;
8. Combined with FIS/MES system: paperless in the true sense can be
achieved.
