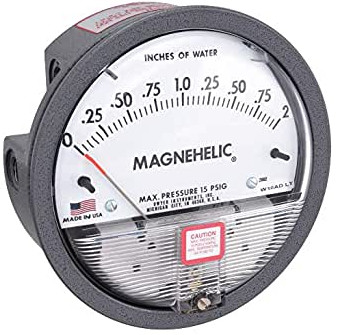

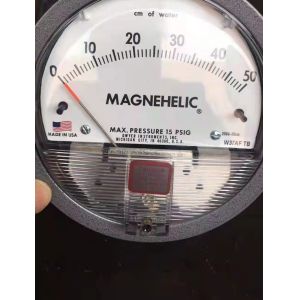

Dwyer 0-2kpa All Stainless Steel Pressure Gauge Digital Magnehelic
Gauge
Introduction
Dwyer pointer differential pressure gauges can achieve 2% accuracy
and up to 81 range options to meet the needs of a variety of
applications. The tried-and-true magnetic linkage principle, using non-wear
moving parts, can quickly indicate low pressure - positive
pressure, negative pressure (vacuum) or differential pressure of
air or non-corrosive gases. Its design is shockproof, shockproof and has the ability to
withstand overpressure. It does not evaporate, freeze liquid differential pressure meter
phenomenon, also does not cause poisoning or leveling problems.
Specification
| item | value |
| warranty | 1 year |
| customized support | OEM,ODM |
| Place of original | USA |
| Brand name | Dwyer |
| Model number | 2000 |
| Accuracy | ±1% of FS |
| Temperature Limits | 32 to 122°F |
| Brand Name | dwyer |
| Type | Digital Pressure Gauges |
| Material | Stainless steel |
| Pressure range | 0-2kpa |
| Weight | 1.18 lb (535 g) |
| Pressure Rating | 0-2kpa |
| Model Number | series 2000 |
Working principle
It utilizes the frictionless Magnehelic motion principle,
eliminating wear, lag and clearance. No liquid filling, no vaporization and freezing, quick indication
of low pressure, non-corrosive gas pressure (positive, negative
(vacuum) and differential pressure). There are 81 ranges, with a minimum range of 0-60Pa(or 0-6mm water
column or 0-0.25 inch water column).
Application: used for measuring positive and negative pressure
difference; It is suitable for measuring positive and negative pressure
difference of clean workshop in pharmaceutical factory and
electronic factory, hVAC, purification table, spraying room,
environmental protection dust removal equipment, air conditioning
cabinet filter net pressure difference detection, etc.
Performance characteristic
Construction
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Housing Materials: Glass filled plastic.
Accuracy: ±1% FS including linearity, hysteresis and repeatability;
±2% FS for ranges 1 in w.c. and below.
Temperature Limits: 0 to 140°F (-18 to 60°C).
Compensated Temperature Limits: 32 to 122°F (0 to 50°C).
Long Term Stability: ±1% FS per year.
Thermal Effect: ±0.05% FS/°F typ.; ±0.10% FS/°F for ranges 1 in
w.c. and below. Display: 4-digit LCD (digits: 0.60H x 0.33W).
Display Update: Selectable for 1 second to 10 minutes or update
only from button push.
Pressure Limits: Normal and bi-directional ranges 5 in w.c. and
lower = 2 psi (13.7 kPa); Normal and bi-directional ranges 10 in
w.c. and higher = 11 psi (75 KPa).
Selectable Engineering Units: in w.c., psi, kPa, Pa, mm w.c., mBar,
in Hg, mm Hg, FS (0-100%).
Power Requirements: 9 V alkaline battery, included, user
replaceable or external power supply 9-24 VDC.
Battery Service Life: Battery life depending on the display update
setting: 150 hours (typical) if display update = 1 second; 9 month
(typical) if display update = 10 minutes; 1.5 years (typical) if
display update is disabled. Battery may last up to four times
longer when using lithium-based battery ULTRALIFE U9VL-J.
Current Consumption: 5 mA max.
Electrical Connections: Removable terminal block for 16 to 26 AWG.
Electrical Entry: Cable gland for 0.114 to 0.250˝ (2.9 to 6.4 mm)
diameter cable. Process Connections: 1/8˝ (3 mm) ID tubing.
Enclosure Rating: NEMA 4X (IP66).
Weight: 1.18 lb (535 g).
Size: 5˝ (127 mm) OD front face.
Agency Approvals: CE.
Application areas:
• Filter monitoring air flow rate
• Blower vacuum detection
• fan pressure indicator
• Pipe room or building pressure
• clean room positive pressure indicator
