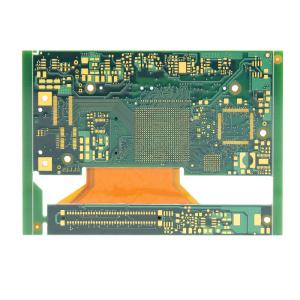

Multilayer Circuit Boards HASL Through Hole Pcb Assembly
FASTPCBA is a one-stop solution for all printed circuit board
services so we are often entrenched with the Printed Circuit Board
production process from manufacturing to assembly. Through our
strong network of well-proven PCB assembly and manufacturing
partners, we can provide the most advanced and nearly limitless
capabilities for your prototype or production PCB application. Save
yourself the trouble that comes with the procurement process and
dealing with multiple components vendors. Our experts will find you
the best parts for your final product.
1. Bare PCB Manufacturing
Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB;
Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base
Circuit Board; High TG PCB; Heavy Copper PCB......
PCB Manufacturing Parameters:
Description | Capability |
Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
Number of layers | 1-48 |
Min.thickness for inner layers
(Cu thickness are excluded) | 0.003”(0.07mm) |
Standard | (0.1-4mm±10%) |
Board Thickness | Single/Double:0.008±0.004” |
4layer:0.01±0.008” |
8layer:0.01±0.008” |
Bow and twist | no more than 7/1000 |
Outer Cu weight | 0.5-4 0z |
Inner Cu weight | 0.5-3 0z |
Min size | 0.0078”(0.2mm) |
Drill deviation | ±0.002″(0.05mm) |
PTH hole tolerance | ±0.002″(0.005mm) |
NPTH hole tolerance | ±0.002″(0.005mm) |
Color | Green,white,black,red,blue… |
Min solder mask clearanace | 0.003″(0.07mm) |
Solder Mask Thickness | (0.012*0.017mm) |
Silkscreen Color | white,black,yellow,blue… |
Silkscreen Min size | 0.006″(0.15mm) |
Max Size of Finish Board | 700*460mm |
Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
PCB Outline | Square,circle,irregular(with jigs) |
Package | QFN,BGA,SSOP,PLCC,LGA |
2. We offer the following PCB assembly services:
* Quick-turn prototype printed circuit boardassembly;
* Turn-key printed wiring board assembly;
* Partial turn-key PCB assembly;
* Consignment assembly;
* RoHS compliant lead-free PCB assembly;
* Non-RoHS assembly;
* Conformal coating;
* Final box-build and packaging.
Advanced Equipment
FASTPCBA has imported the advanced machinery from US,Japan,German
and Israel to improve our production and technical ability.We have
set a great example the PCB field of flying probe testing,buried
and blind via and special controlled impedance.We have a highly
developed R&D division which has helped our factory
successfully produce mechanical micro via,high density impedance
and HDI.
* Solder Paste Jet
* X-RAY
* AOI
* Wave Soldering
* Reflow
* X-RAY Counter
* Surface Mount Machine
* On-line AOI
* MY-500
* SPI
We have a global sales team available to assist you with PCB
Manufacturing & PCB Assembly services, Send your PCB files to get
better price now !
