    60L Medical Grade Horizontal Sand Mill Machine Medical Capsule Coat Grinding

    Ask Lasest Price
    Brand Name : Allwin
    Model Number : HZPLUS60
    Certification : ISO9001
    Price : USD 220000-300000Per Unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30 Units per Month
    Delivery Time : 90-120 Working Days
    • Product Details
    • Company Profile

    60L Medical Grade Horizontal Sand Mill Machine Medical Capsule Coat Grinding

    60L Medical Grade Stainless Steel Horizontal Sand Mill Machine For Medical Capsule Coat Grinding


    Medical capsule coat grinding are usually produced by horizontal bead /sand mills with medical grade stainless steel, to ensure the safety and non-pollution. Our machines can help users save enegry more than 50%, 2 times of production capcity.


    1. Technical data of horizontal sand mill

    NoMain ParametersHZPlUS50/60 bead millNotes
    1Motor power
    (kW)
    30/37KWEx-proof/non ex-proof available
    2

    Effective volume of

    grinding chamber (L)

    50/60Lvolume can be suggested according to different grinding materials and usages
    3Water pressure
    (MPa)
    0.3
    4Cooling water consumption (L/min)2.5-3.0m3/hAdvision: Users offer the Cooling water less 10°C
    5Dimensions:L*W*H
    (mm)
    2040*1200*1840
    6Weight
    (kg)
    About 1600-2000
    2. Configuration Instructions
    1.inner chamber material: 316L stainless steel, 304 stainless steel; SIC ceramics
    2.outer chamber material: 304 stainless steel
    3.dispersing shaft: 40Cr with hard chromium plating, brand: NSK
    4.dispersing system material: 304 stainless steel, 316L stainless steel
    5.feeding and discharging end covers: 304 stainless steel
    6.discharging mode: dynamic-axis center discharging
    7.mechanical sead: double end mechanical seal, with patent technology,on the side of lower pressure
    8.feeding pump: 1" puenmatic diaphragm pump, Ingersoll Rand
    The Dispersing system, could used different materials according to the product's demands.

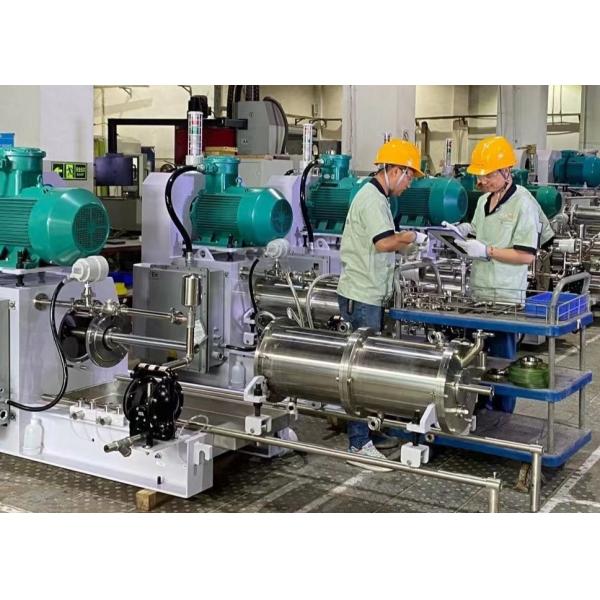

    3.The main processing equipment:

    The United States imported four axis Haas machining center

    Quality control

    serriously control the qultiy of purchasing parts and serriously check the quality of producing in the process


    4. Exhibition show
    we also positively particaipate in different industries meetings and exhibitions to show our allwin company to customers, to learn more information to make progress.
    customers are usually invited to our factory to chech our producing capacity, quality control, etc.

    5.The After sales service:

    1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

    2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.


    6.The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.


    If any detailed information and price ,pls contact me, also warmly welcom to visit us.
