PET Monofilament Extruder Machine for Bristles High Bend Recovery
yarn 100kg/h
Product Description:
1. Dryer system
2. Extruder
(1) Screw diameter: 90mm; Rotation speed: 0～72rpm.
(2) L:D: 33:1; material of screw: 38CrMoALA ；
The screw structure is special designed for PET chips.
(3) Pressure feedback system can adjust the screw speed
automatically to make sure the uniform of yarn.
(4) Manual filter changer
(5) Screw heater: Far infarad
(6) Spinneret device: 1 set
(7) Heater: Electric heating ring to ensure the temperature
stabilization.
(8) Two hopper doser: 1 set
3. Queching tank: 1 set
(1) The tank is made by stainless steel 304.
(2) The height of tank is horizontal pushing structure is
conveniently to disassembly the spinneret.

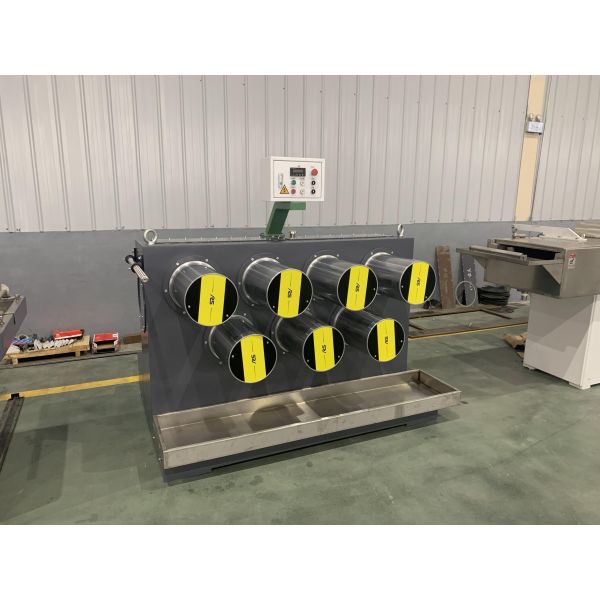

4. First seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard
chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run
smoothly.
(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
(4) Built-out oil lubrication system which makes the gears run
steady.
5. Hot water tank: 1 set
(1) Tank length: 4000mm
(2) Heating power: 50kw, electric heating.
The temperature controlled by solid relay.
(3) The tank is made by SS 304 with the insulating layer
(4) Equip water suction unit.
6. The second seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard
chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run
smoothly.
No rubber roller.
(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
7. Single layers hot blast oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 22.5KW
(3) Special design of hot air channel which make the temperature
evenly.
8. The third seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard
chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run
smoothly. No rubber
Parameter:
| Screw diameter | Φ90mm |
| Raw material | PET chips | Filament size | 0.15-0.3mm |
| Capacity | 100Kg/H | Filament shape | round/profile |
| Screw L:D | 30:1 | Stretching unit | 3 sets |
| Screw material | 38CrMoALA | Winder | 2 spindles |
| Max linear speed | 200m/min | Instillation power | 260Kw |
| Nozzle holes | 400 holes | Overall size | 39×2.9×2.9m |
