Egg Liquid Sterilization Pasteurizer Machine SUS316 With Pipe White 3-4T/H

Egg Liquid/Egg White 3-4T/H Pasteurizer Sterilization Machine SUS316 With Pipe

Egg liquid/egg white Pasteurizer SUS316 With Pipe

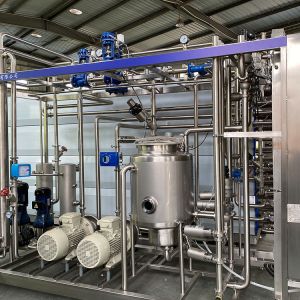

UHT sterilizer machine
Tubular type UHTsterilizer is standing for Ultra High Temperature Instantly Sterilizing,the food and beverage will be heated to 137℃C-140°Cfor 3-5S to kill all the bacterias and reach to commercial aseptic.All parts of the UHT sterilizer machine in contact with the product are made of 316 stainless steel, the plate gaskets and seals are made of food grade fluoroelastomer, and the product pipeline connections are made of DIN sanitary fittings. In the display output, the UHT sterilizer machine is equipped with touch screen, PLC program control, the temperature, flow and other parameters of the product dynamic reflection, and can choose pressure gauge or digital sensor according to the user's requirements.Therefore, the UHT sterilizer machine can meet most industrial production conditions

Product Descripyion
UHT Sterilizer machine is the food industry must have sterilization equipment. UHT sterilizer machine that kills microorganisms on products, packaging containers, packaging materials, packaging accessories, and packaging parts in time to reduce them to the permissible range. UHT sterilize machine used for continuous sterilization of fruit and vegetable pulp, raw juice, concentrated juice, milk, juice beverage ,water or similar products.

Plate pasteurizer working principle

The UHT sterilizer process is under high-precision temperature control system. When the cold drinks are filled into the heat exchanger, they receive heat from the sterilized hot drinks. Then, they will be heated up to around 135-150℃ by superheated steam and water. Next, they will be kept in the constant warm tube for UHT sterilization. When they come out from the constant warm tube, they transfer heat to the incoming cold drinks, and cool down in the cooling part before they reach the outlet.

Technology Data

UHT sterilizer machine performance features

• The product has a wide range of viscosity. The use environment pH value is 1 to 14.It is suitable for fresh milk, pasteurized milk,yogurt, color milk, fruit juice,tea beverage, wine,ice cream, soy milk,milk beverage, longevity milk,jam Aseptic production of products such as foods, sauces, etc.The products treated by the UHT sterilization system can be maintained at room temperature for 3 to 6 months (without the addition of any preservatives) under aseptic packaging conditions.

• The equipment is fully or semi-automatic computer controlled, touch LCD operation.

• Instant processing to maintain the original flavor of the product.

• PID temperature control system, the sterilization temperature is continuously recorded on the recorder in real time.

• The product heat treatment process is uniform, and the heat recovery rate is as high as 90%.

• There is no contact point in the tube,no dead corners,the product will not stick to the tube, and the corrugated tube forms a high turbulence during the serilization process, and has a self-cleaning effect in the material flow process,so it is not easy to form scale and pollution in the tube.

• Long continuous running time and better CIP self-cleaning effect.

• Fewer spare parts and lower operating costs.

• Easy installation, inspection and disassembly, convenient pipeline maintenance.

• Reliable materialSUS304 or SUS316L, can withstand higher product pressure.

• The temperature difference between the heating medium and the material is small, and gentle heating can be achieved.The heat exchange tubes adopt acombination of multiple tubes.Each tube adopts automatic polishing technology and automatic welding technology,There are no dents in the tube. This increase the continuous working time of the sterilizer.

• High degree of automation,the entire process from CIPproces, SIP process and material sterization processcan be automatically controlled.

• The sterilization temperature control is accurate and reliable: the steam valve is used to automatically adjust the temperature to maintain heat and pressure.

• The system has strong security, and the system accessories are selected with good performance and high reliability. The system design attaches great importance to

  personnel, equipment safety, steam, hot water, materials, etc. have pressure protection measures and alarm systems




KUNSHAN YGT IMP.&EXP. CO.,LTD is a innovative, learning and technical international company.(together with Kunshan Yiyanghe Machinery Co.,ltd as manufacture). With enhanced creativity, YGT has tackled many technical problems. Built close cooperation between many food machinery manufacturer as well as outstanding packing and consumable material companies. Communication played an important role throughout the whole growth of YGT. Thanks to research and development institutions, equipment manufacturing factories and our clients, YGT won good reputation and confidence among our peers and kept upgrading and improving product performance.

YGT mainly focus on technical consulting and business service for fruit and vegetable processing equipment and packing consumable. The most optimum technology, high cost performance and superior after-sales service are specially designed for clients. Not only Africa, South-east Asia and South Africa, but also European and American clients also regard highly of YGT.

For the purpose of “creativity, learning, service”, YGT adhere to “team share , efficient cooperate, customer care ” concept, to make YGT known, familiarized and trusted by more and more people in the world.

with food processing machine and relative package two branch to provide convenient for clients demand.

-- Food Machinery Establishment and Development :

a manufacturer and supplier for fruit & vegetable processing equipment. OEM for clients custom made equipment since 2013.

We specialize in handling tropical fruits turnkey project.:

• Mango/papaya pulp production line
• Pineapple/guava juice production line
• Dilution System processing plant
• Dairy milk processing plant & machiner

Also we sell single equipment for plant assemble:

• Washing Machine & Blancher
• Crusher & Juice Extractor
• CIP&TankS(storage/blending)
• Pasteurizer/UHT sterilizer
• Aseptic filler

-- Pakcage Material Establishment and Development :

Factory was established in 2002 with the main products of aseptic bag for concentrated juice/paste, BIB and IBC bags. The company is now a leading package enterprise in China and accumulate lot long-term cooperation clients.

Main Product:
-High Standard and Alufoil Barrier aseptic bag,1-220L

-BIB bags,1-30L (aseptic,non-aseptic type)

-Kind of fitment

-Relative matched filling machine

Production:

Production in clean room (Class 100:000)

Quality Control and Innovation Environment

Certificates and Honors

ISO9000

FSSC22000

SGS

FDA Certificate
