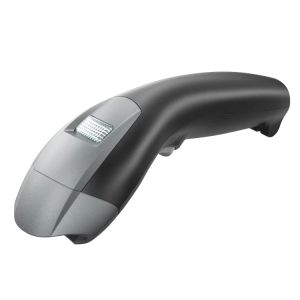

High Performance 2500 Pixel Technology CCD Barcode Scanner Usb
Interface Compatible With Windows ,Android OS
Product Description:
K-526 is sleek and stylish Usb automatic barcode scanner which
adopt 2500 pixel technology and deliver excellent decoding
performance , it can read very long size 1d barcode like brazil
Febraban ,the size max 13-15cm, this Barcode scanenr gun usb
interface can decode it fast and accurate,its high decoding
performance make it an optimal choice to get your business upto a
new ground.
Product Features:
• 2500 points image technology
• Excellent decoding on scratched ,stained ,fuzzy barcodes
• Read barcodes from mobile phone display
• USB,RS232 ,PS2 interfaces supported
• Compatible with multiple languages
Product Specification:
| Performance Parameters |
| Light Sources | 617nm Red visible LED |
| Supported Symbologies | UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII,
China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5,
Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code
32(Italian pharm code), Code 39 extended, GS1-128 and ITF-14,
SISAS, GS1Omnidirectional, GS1 Limited, Aviation25, RSS 14. |
| principle of scanning | 2500 Point pixel ccd Image Sensor |
| Scan Speed | ≥270 times/s |
| Scan Mode | Manual/Continuous/Automatic/Automatic Induction Scanning (optional) |
| Prevision | 4mil (0.1mm), 3mil(Optional) |
| Depth of scan field | 20-330mm(0.33mm, PCS90%) |
| Scan Angle | Yaw 65°, Rotation 30°, Pitch 55° |
| Error Rate | 1/5million |
| Interface | USB-HID, USB-COM, PS2, RS232 |
| Physical Parameters |
| Dimensions | 66mm*65mm*200mm |
| Weight | 160g |
| Material | ABS+PC |
| Cable Length | 2M |
| Environmental Parameters |
| Operating Temperature | -20°~ 50℃ |
| Storage Temperature | -40°~ 70℃ |
| Relative Humidity | 5% - 95% RH (Non-condensing) |
| Drop/Shock Resistance | Withstands multiple times 3meters drops to concrete |
| Electrical Parameters |
| Voltage | DC5V±1% |
| Operating Current | 150mA |
Product Pictures:
Product Application:
• Point of sale
• Check in and out of warehouse
• Express and billing
FAQ
1,what warranty do you offer for your products ?
We offer 2 years warranty on the barcode scanner ,extended warranty
time is possible
2,what about the minimum order quantity of this Ccd barcode
scanner?
Sample to test the minimum order quantity is 1pc
3,is it compatible with android pos system ?
Yes ,it is compatible with android ,linux and windows pos systems
4,what about the payment terms ?
As first orders ,we need 30% TT deposit and 70% balance clear
before delivery
5,Does this ccd barcode scanner read frozen bottles barcode ? which
there a film ice on the barcode
Yes , it is 2500 pixel technology and read frozen barcodes well
than laser scanners
