Conveyor Belt 600BPH Barrel Bottling Equipment With Touch Screen

Ask Lasest Price
Brand Name :	FILL PACK
Model Number :	QGF600
Certification :	CE, ISO9001
Price :	USD $18,000-$20,000/set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5 sets/month
Delivery Time :	15-20 working days

Add to Cart

Product Details
Company Profile

Conveyor Belt 600BPH Barrel Bottling Equipment With Touch Screen

600BPH Barrel bottling equipment/line/device gallon bucket with touch screen

Washing-filling-capping 3-in-1 Monoblock
1. 4-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows

Function of Water Gallon Filling equipment: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate

The parameters and specifications of Water Gallon Filling equipment:

Containers and Specifications
Project Name: Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line				Mineral Water / Pure Water
Material	Shape	Filling volume	Filling Type	Conveyor Mode
PC / PET	Round or Square	3 - 5 Gallon	Gravity filling Normal temperature	Conveyor belt
Adjustable Specifications of Bottle Type	Size of Barrel : ф276×490mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label		Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions		Temperature:10～40℃；Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase； Frequency:50HZ±1%

Except the model 600BPH Water Gallon Filling equipment, we aslo have other capacities.

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	2	3	4	6	12
Volume	3&5 Gallon
Barrel size	Φ270*490mm
Capacity(b/h)	60-100	100-240	250-300	400-450	600-800	800-900	1000-1200
Air pressure(MPa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Air consumption(m³/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Motor power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5

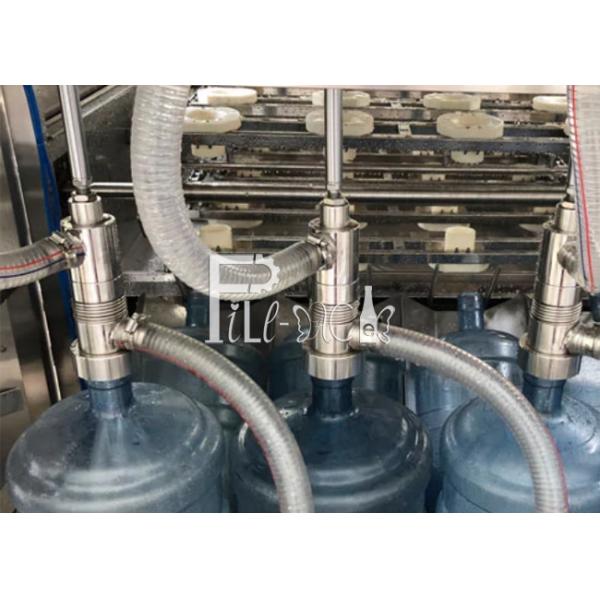

4 filling heads:

FAQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
