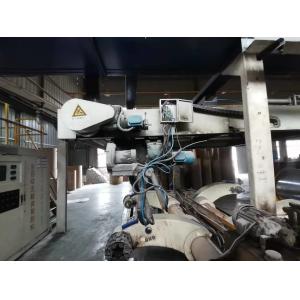

Iso Cardboard Making Machine Splicer In Packaging Industry

The Basic Principles Of Splicer In Corrugated Packaging Industry

The Basic Principles Of Splicer In Corrugated Packaging Industry

Frame: all components are installed or suspended on the frame. Because it is suspended on the bridge support, the frame does not equipped with selfframe.

Free Roll: Before the paper web leaves splicer, it is running back and forth between the immovable guide roller and guide roller of the storage frame on the side of the paper outlet of the machine.In this way in the storage rack to form a paper storage. In the process of paper splicing,the free roller moves towards the paper outlet side of the machine so as to release the paper web stored therein for continuous production. After that,the storage rack is moved back to the other end of the machine and the paper webare restocked.

Splicer Frame: there is a paper frame at each end of the splicer.The paper frame is composed of an adhesive roller and a guard plate.In the paper frame, the new paper web is first cut in the protective plate, then the paper tape is pasted,and finally the new paper web and the original paper web are pasted through the adhesive roller.

Pressure roller: in the process of paper splicing, the pressure roller is pressed to the adhesive roller, so as to press the adhesive points of two paper web.

Cutter unit: the cutter unit is composed of a knife holder and a blade. The cutter unit cuts off the original paper web. During cutting, the cutter is inserted into a groove on the clip rod.

     Cangzhou AoDong Packaging Machinery Manufacturing Co., Ltd was built in 1999 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.

     Our products mainly export toAmerica,Russia,Turkey,Korea,Egypt,India,Iran,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.We uphold the "On good if water, hold world with virtue" company culture and pursue "Don't miss every detail in order to achieve customer satisfaction" business philosophy,and make excellence of products! In decades year,company's products won the "Hebei quality products" certificates,"Science and Technology Progress Award", and has won the governmental honorable title of the provincial and municipalities levels!
