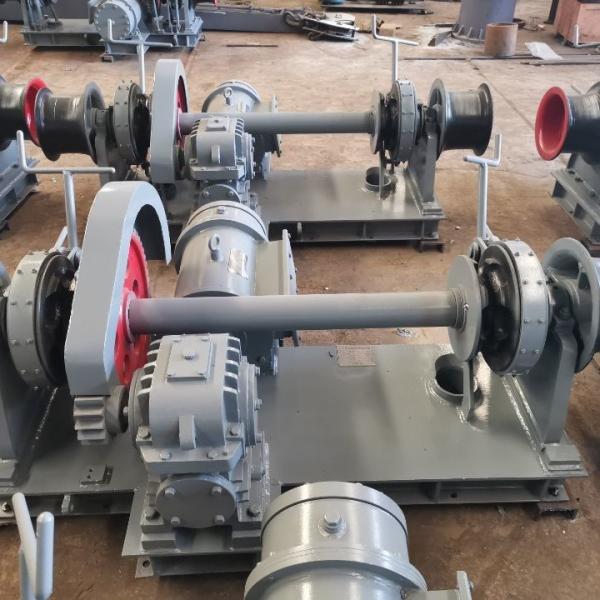

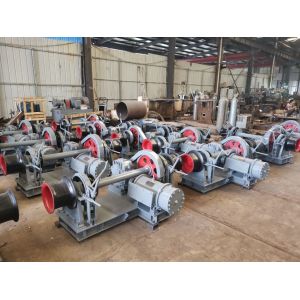

Deck Marine Electric Anchor Windlass With Double Warping Head

    Buy cheap Deck Marine Electric Anchor Windlass With Double Warping Head from wholesalers

    Buy cheap Deck Marine Electric Anchor Windlass With Double Warping Head from wholesalers
    • Buy cheap Deck Marine Electric Anchor Windlass With Double Warping Head from wholesalers
    • Buy cheap Deck Marine Electric Anchor Windlass With Double Warping Head from wholesalers

    Deck Marine Electric Anchor Windlass With Double Warping Head

    Ask Lasest Price
    Brand Name : JUVI
    Model Number : JVL-121
    Certification : CCS, ABS, LR, RMRS, etc
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000+PCS+Month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Deck Marine Electric Anchor Windlass With Double Warping Head

    Marine Electric Anchor Windlass deck equipment marine anchor windlass


    Specification of Marine Electric Anchor Windlass


    Deck Equipment Series1. Mooring Rope/Cable Winch(Hydraulic/Electric)
    2. Mooring Anchor Windlass/Winch(Hydraulic/Electric)
    3. Mooring Towing Winch
    4. Mooring Position Winch
    5. Cargo Winch
    6. Moving-Boat Winch
    7. Scientific Research Winch
    8. Linear Winch
    9. Double Row Rope Winch
    10. Winch Type Towing System
    11. Military Bell Winch
    12. Offshore Winch
    Drive PowerElectric /Hydraulic/ Manual/ Diesel
    Warping Head,
    Gypsy and Drum
    Single/Double, Customized
    Gypsy SizeDia. 12.5-127mm(U2,U3), Customized
    Working Load1 Ton to 350 Ton, Customized
    Warping Head10KN-100KN, Customized
    Holding Load68KN-3010KN, Customized
    Power Required4-132KW, Customized
    Chain Speed≥9m/min, Customized
    ClutchManual /Hydraulic Operated Jaw Clutch
    BrakeSpring Applied Pneumatically or Hydraulic Released Band Brake
    ReleaseEmergency Quick Release
    Control TypeLocal Control Console and remote Control Panel
    OptionsDrag Brake System;
    Length and Tension Monitoring Systems Stainless Steel Brake Drum;
    Chain Stopper;
    Fairlead, etc
    AdvantagesHigh quality with competitive prices
    Much experience in production and exportation
    Special design for different clients.
    Short delivery time if clients need urgently
    Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS

    Main specification and parameter for Electric windlass
    Specification of Electric Windlass
    Chain Dia
    (mm)
    Working Load
    (kN)
    Weigh Anchor
    Speed
    (m/min)
    Supporting Load
    (k/N)
    Mooring
    Load
    (kN)
    Motor Power
    (kW)
    19
    19
    17.2
    ≥9
    135
    15
    8.5
    28
    28
    37.2
    ≥9
    289
    25
    11
    38
    38
    68.9
    ≥9
    522
    50
    22
    56
    56
    149
    ≥9
    1093
    80
    45
    76
    76
    274.4
    ≥9
    1932
    147
    60
    92
    92
    402
    ≥9
    2735
    200
    85
    105
    105
    523.7
    ≥9
    3465
    250
    115
    122
    132
    707
    ≥9
    4495.5
    250
    100

    Depending on the situation, the operation of a Marine windlass may also adopt the method of stopping the ship to the ground and using the windlass power to draw out the anchor and chain to anchor the ship until the desired length of chain is completely loose on the seabed. After throwing the anchor, hold the chain making equipment, brake the brake belt, the clutch is off, and the power source of the anchor is blocked.


    It is generally not advisable for ships to anchor in open areas during heavy waves to prevent chain breaking, anchor loss and damage to windlass. Anchor pulling operation: inform the power supply and chain water in advance, close the clutch, open the brake belt and chain making equipment, and pull anchor according to the instruction. In the process of winching, pay attention to the investigation to prevent overload work. After receiving the anchor, brake, hold up the chain making equipment, release the clutch, close the power supply, and finish the work.
