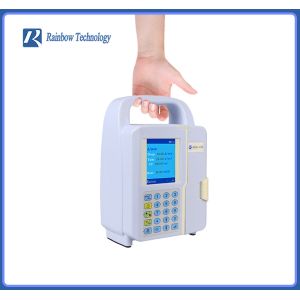

ISO Certificated Medical Device Hospital Clinic Handheld Electric
Peristaltic Infusion Pump
| Main features | Reliable and Safe:
1, Additional set of bubble alarm design(double bubble alarm)
ensure more secure infusion;
2, Advanced safety design able to stop infusion and alarm even if
the CPU damage,the medical staff can ues it safely;
multipurpose:
It can be transfused, transfused blood and transported nutrient
solution. |
| Pumping way | Semi-squeeze finger-type peristaltic pump |
| IV-sets | Special or quality PVC/TPE infusion sets with an external diameter
of 3.4mm~4.5mm |
| User options | no |
| Infusion modes | 4 infusion modes:
1, Flow-rate: ml/h;
2, Time-amount: ml/h;
3, Drop-rate: d/min;
4, Body-weight: mg/kg/h |
| Parameter range | 1, Flow-rate: 1.0~1200.0 ml/h, 0.1ml/h step;
2, Time: 1s~99h59m59s, 1s step;
3, Drop-rate: 1~333 d/min, 1 d/min step;
4, Dose: 0.1~999.9 mg, 0.1mg step;
5, mg/kg/h: 0.001~999.999 mg/kg/h, 0.001 mg/kg/h step;
6, Body-weight: 1~300 kg, 1kg step;
7, KVO rate: 1.0~5.0 ml/h, 0.1 ml/h step;
8, Bolus rate: 50.0~800.0 ml/h, 0.1 ml/h step;
9, Bolus volume: 0.1~99.9 ml/h, 0.1ml step |
| Precision | Better than ±5% (using a calibrated or a special IV-set) |
Alarm:
1, Air in tube, 5 grades of sensitivity (double bubble alarm);
2, Bubble sensor fault;
3.1, Upper-end occlusion, -20~ -60 kPa,8 grades of sensitivity;
3.2, Upper-end base-pressure fault;
4.1, Lower-end occlusion, 20~ 140 kPa,8 grades of sensitivity;
4.2, Lower-end base-pressure fault;
5.1, Pump rotation fault;
5.2, Inverse-infusion;
6, Abnormal door-opening;
7, Low battery power, battery fault;
8, Overtime pause;
9, Completed infusion;
10, AC power fault;
11, MCU fault, and stop infusion;
12, Battery temperature is too high.
Data function:
1, Memory of calibration: Records the calibration data of tube
automatically for application;
2, Memory of parameter: Records the latest infusion parameter for
next operation;
3, Historical records: records latest 1000 infusion events.
(what/when/why,flow-rate, etc.)
| Safety classification | Class I; Internal power supply, CF type, IPX4 equipment |
| Power supply | AC 100~240V, 50/60Hz, Built-in rechargeable Li-battery |
| Power consumption:20VA |
| Working time of battery: 7h@25ml/h |
| Weight and size | 130mm(w)*206mm(h)*118mm(t); about 1.6kg |
| Optional accessories | 1, Warmer;
2, Wireless communicating module. |
| Chinese Certificate | yes |
Packing
Packing terms: Anti-collision film+ Carton box
Product Size: 10.1*12.5*9CM
Package Size: 27*21*17CM
Net Weight: 1.2kg
Gross Weight: 1.7kg
Shipping:
Air shipping or Express courier is recommended if the order
quantity was less than 20 units. It usually takes around 7 days to
reach the destination. By ocean shipping, it normally takes 20-40
days depending on the destination port.
1. who are we?
We are based in Hunan, China, start from 1997,sell to Domestic
Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central
America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe
Pump,Nutritional Pump
4. why should you buy from us not from other suppliers?
Hunan Rainbow Technology Co,Ltd is a professional manufacturer and
wholesaler in monitor with 19-year experience. In order to meets
the marketing demand, our company cooperate with the America RMS
Company to release a serials of PM-9000 parameters monitor.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
